Drawing a lake by points for the 2D game
  Looked at 2251 times
 I draw the lake as vector graphics in Adobe Illustrator. I take the coordinates of the points from Adobe Illustrator and add them to my 2D game on C++ OpenGL
last updated: 17 March 2024
I'm doing a 2D game airplane flying and I want to draw water or a lake.

In OpenGL you can draw using triangles like this:
Step 1. Open Adobe Illustrator
If you don't have Adobe Illustrator CS5 installed, you need to Download and install the trial version Adobe CS5 Master Collection ...

Open Adobe Illustrator CS5:
Open Adobe Illustrator CS5 | Vector Graphics
Open Adobe Illustrator CS5 | Vector Graphics

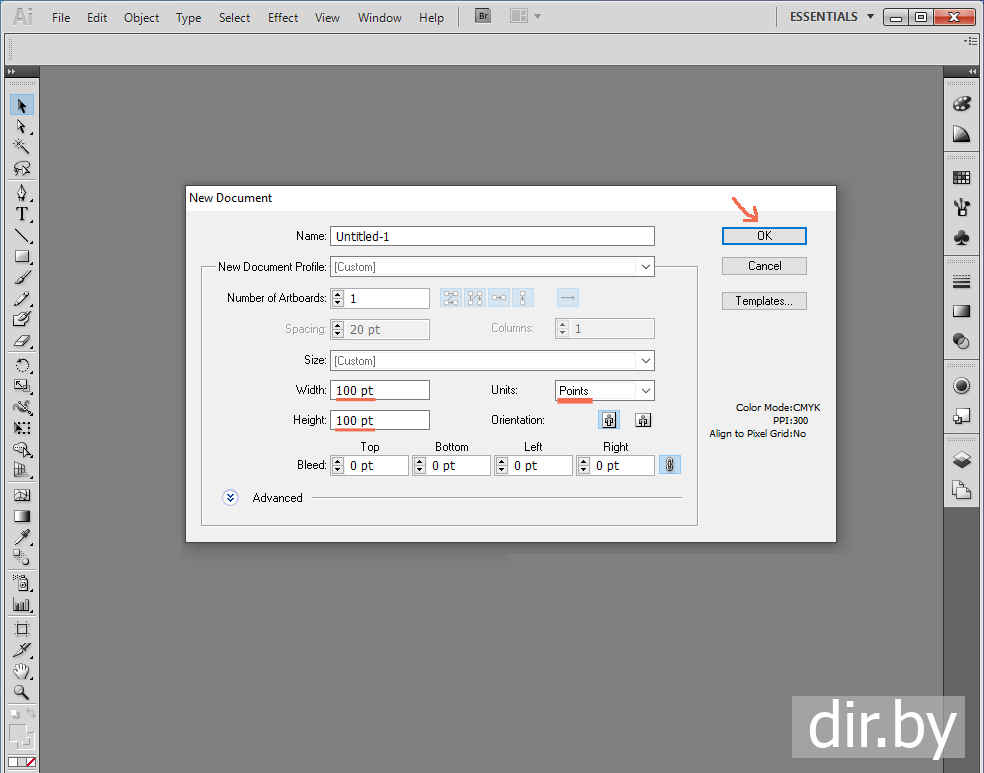

Step 2. How to Create a New 100 x 100 Dot Canvas

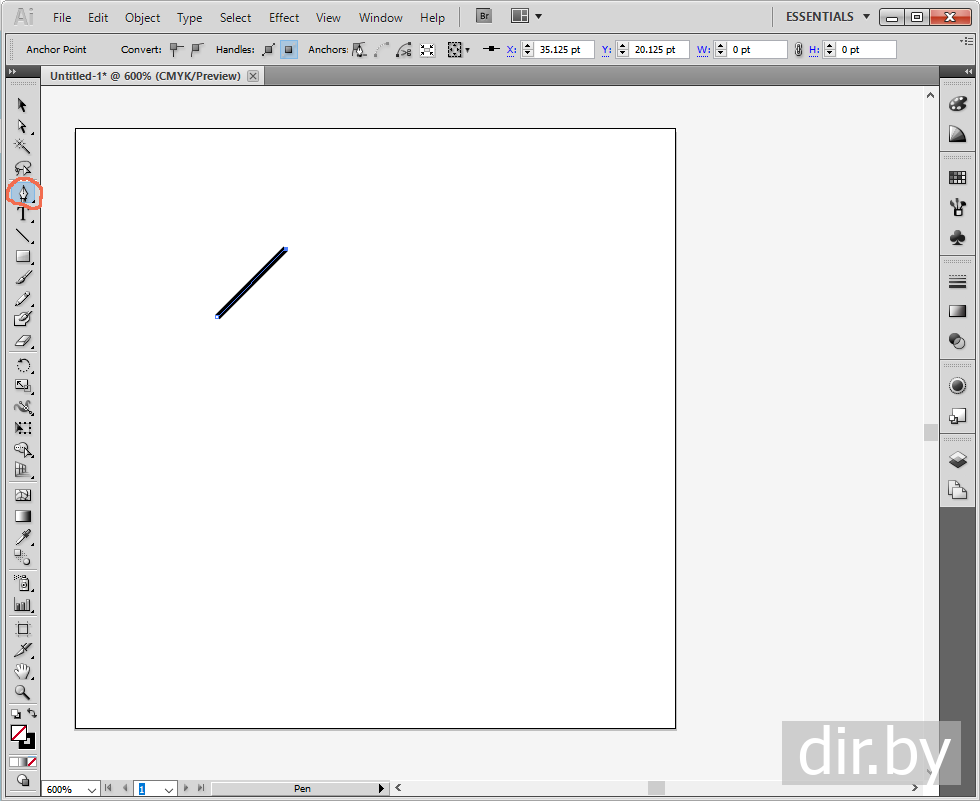

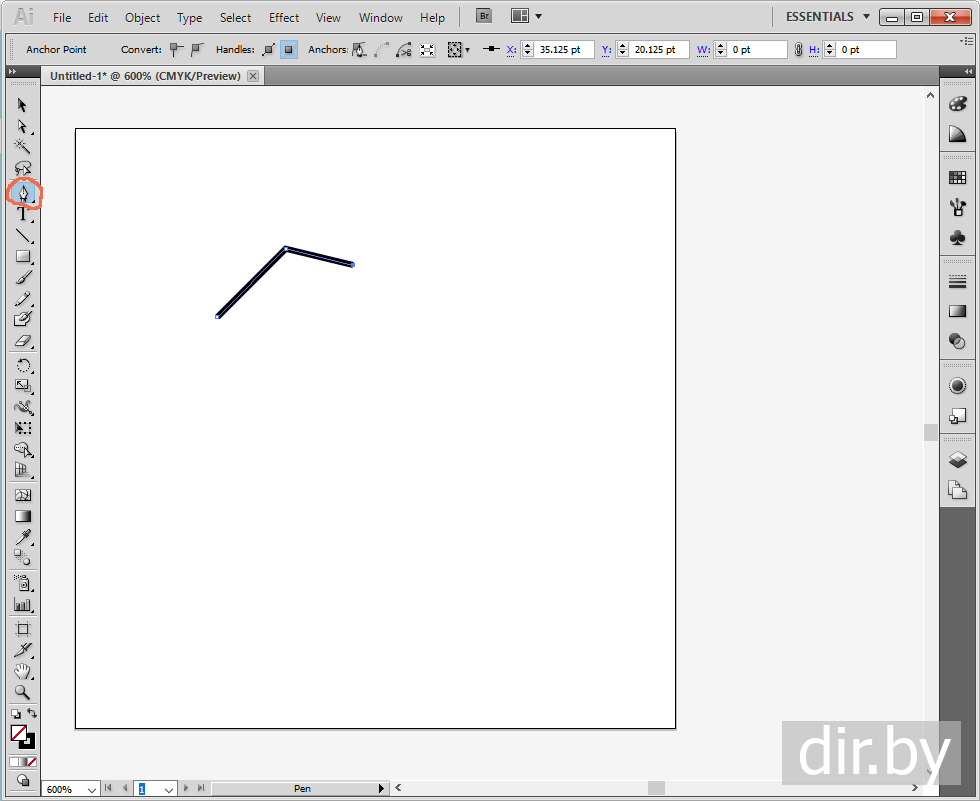

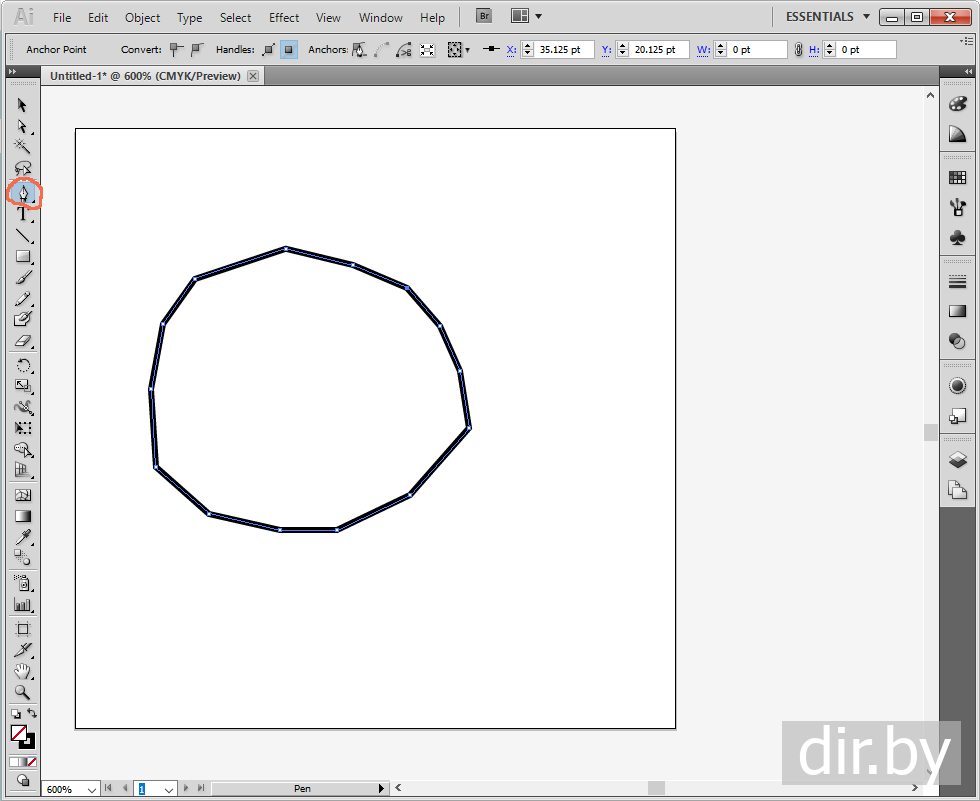

Step 3. How to Draw a Lake

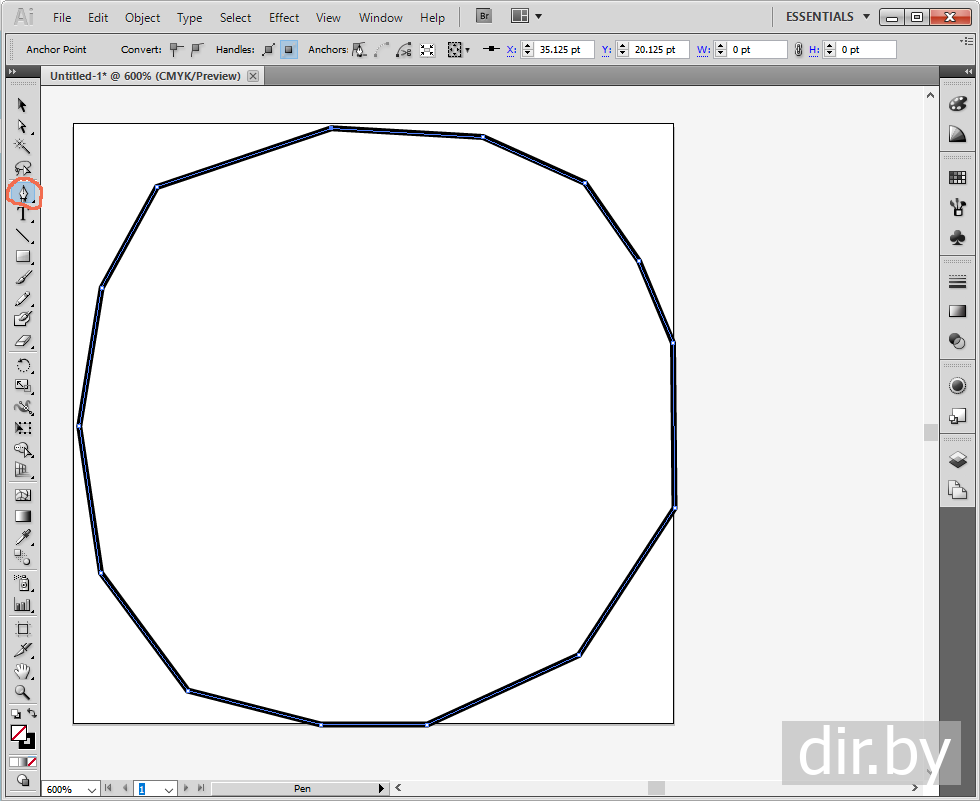

Step 4. Pressing the lake to the borders

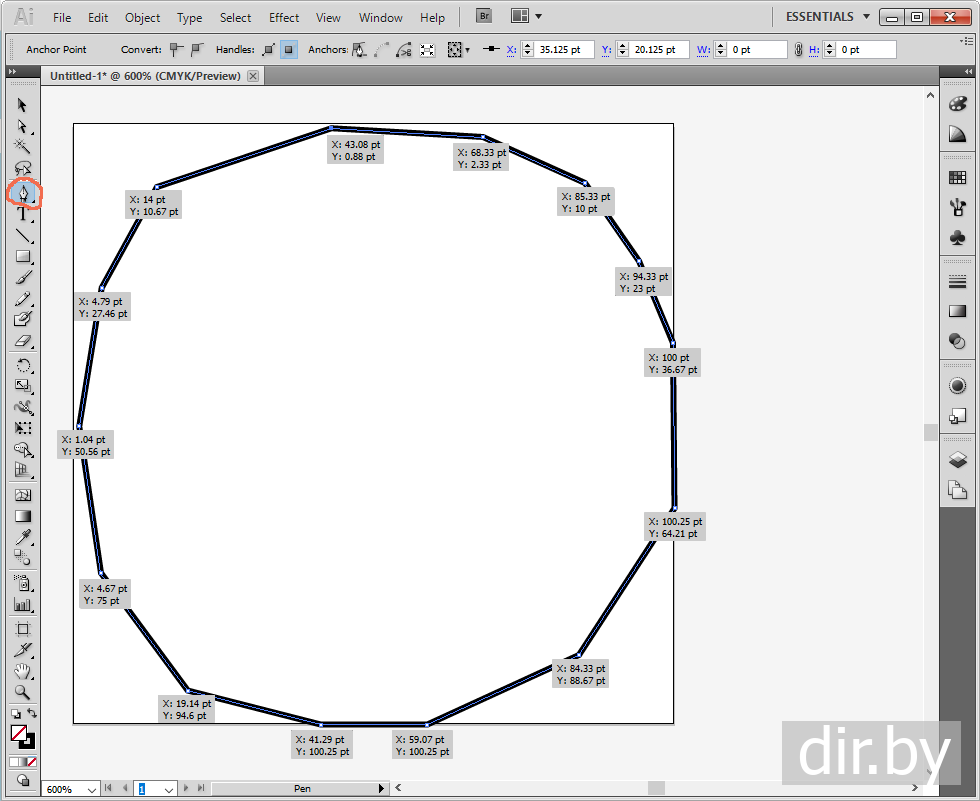

Step 5. Taking all the points of the lake
Step 6. Added points to the project
Added dots (water) to my Phone game Android Native C++ Game in Android Studio using Android NDK, OpenGL ES, C++ ...

I have a file my_game_assets.h in my project Android Native C++ Game and in this file in the variable g_Lake:
• Coordinates of points and colors are stored as an array
• Mode how to connect Points. I'm using GL_TRIANGLE_FUN.

How does OpenGL draw?
The OpenGL library needs dots and a drawing mode to draw.
I'm using GL_TRIANGLE_FUN mode and here are my points:
I've set 16 points in the array:

Center Point   XY(50, 50)
Point 1   XY(43, 0)
Point 2   XY(68, 2)
Point 3   XY(85, 10)
Point 4   XY(94, 23)
Point 5   XY(100, 36)
Point 6   XY(100, 64)
Point 7   XY(84, 88)
Point 8   XY(59, 100)
Point 9   XY(41, 100)
Point 10   XY(19, 94)
Point 11   XY(4, 75)
Point 12   XY(1, 50)
Point 13   XY(5, 27)
Point 14   XY(14, 10)
Point 1   XY(43, 0)
OpenGL will make a triangle on three points and paint it inside.

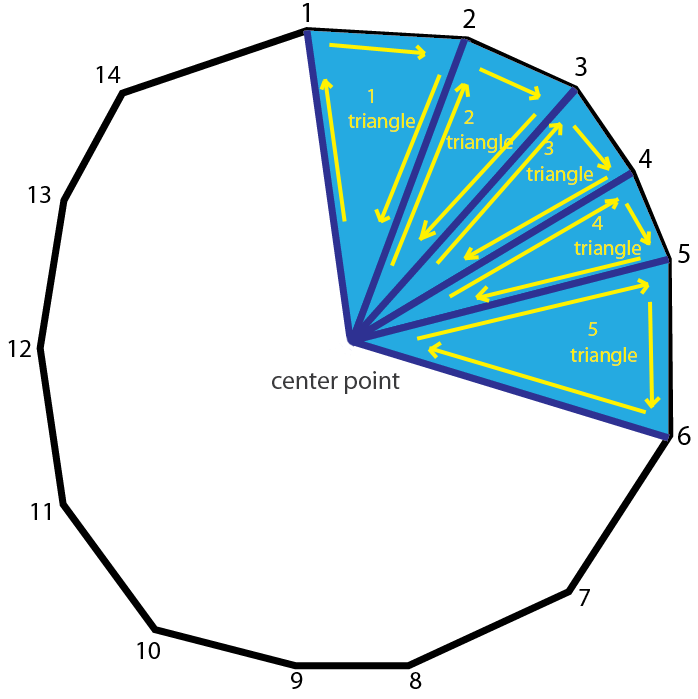

The [eng]GL_TRIANGLE_FUN mode will make triangles like this:

1st triangle: center point, Point 1, Point 2

2nd triangle: center point, Point 2, Point 3

3rd Triangle: center point, Point 3, Point 4

4th triangle: center point, Point 4, Point 5

5th triangle: center point, Point 5, Point 6

etc.
