 How to create new cpp file and add to project android NDK C++? | Android Studio, NDK, C++, CMakeLists.txt
last updated: 23 May 2023

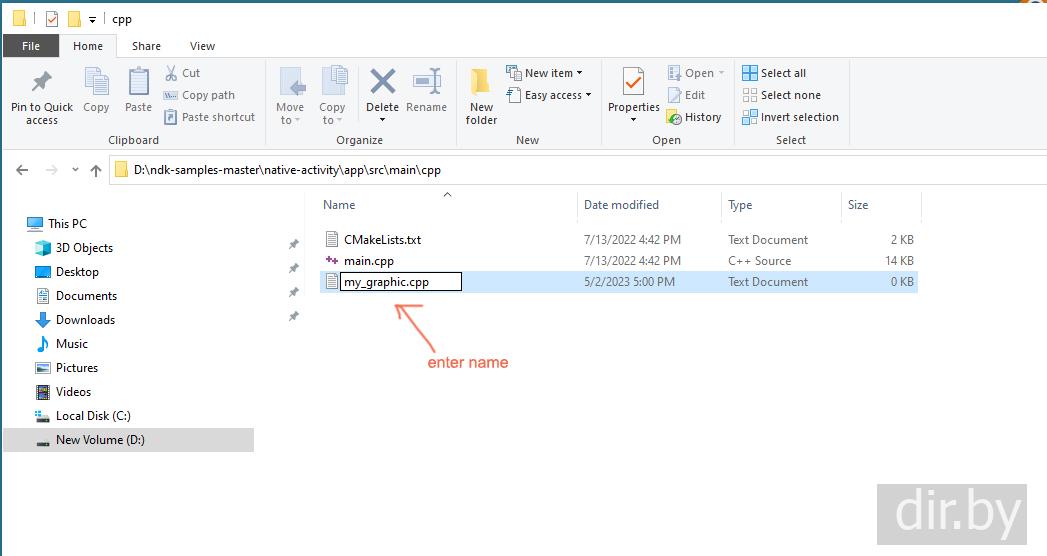

Step 1. Create a new file my_graphic.cpp in File Explorer
Open File Explorer
Select the folder D:\ndk-samples-master\native-activity\app\src\main\cpp\
and create a new file: click New → Text Document
After creating a new file in File Explorer, open Android Studio.

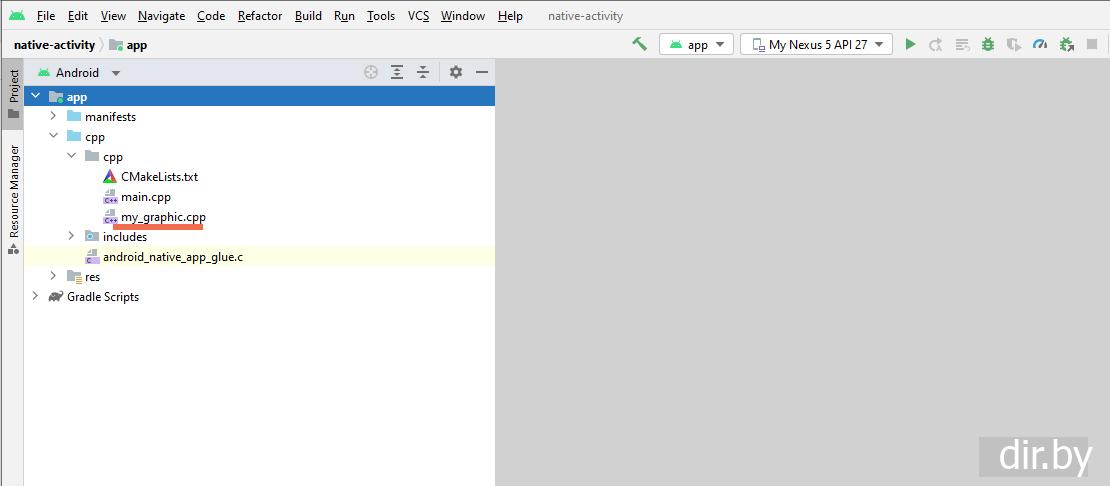

We see that the file automatically appeared in Android Studio:
Note!
It happens that a newly added cpp file does not compile well.

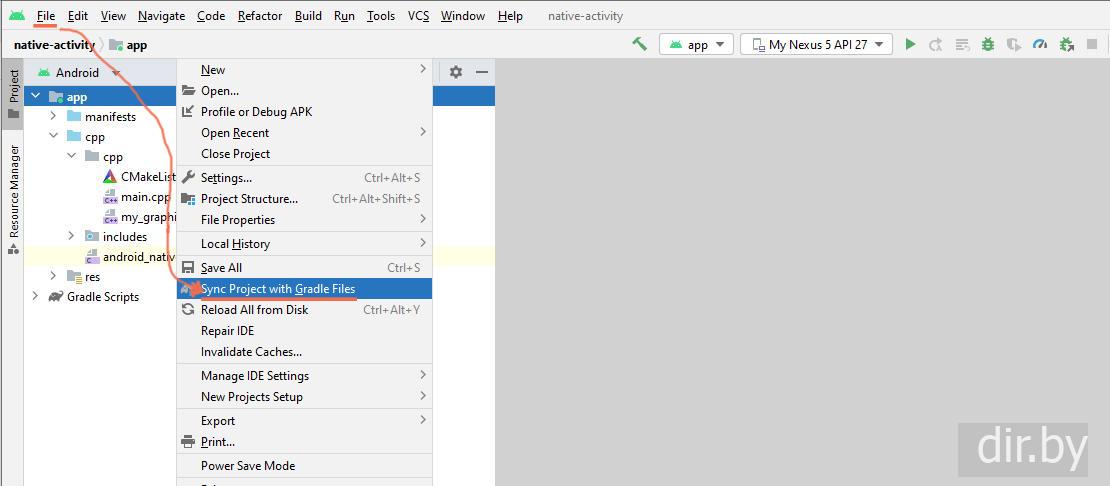

Therefore, you need to click on FileSync Project with Gradle Files
Step 2. Add the file my_graphic.cpp to CMakeLists.txt
For a new cpp file to compile, it must be added to CMakeLists.txt.
To add a cpp file to CMakeLists.txt you need to add the file name like this:
Before adding the cpp file:
After adding the cpp file:
...
add_library(native-activity SHARED main.cpp)
...
...
add_library(native-activity
          SHARED
          main.cpp
          my_graphic.cpp)
...
We look at the entire code
before changes:
after changes:
File CMakeLists.txt
hide ↴
#
# Copyright (C) The Android Open Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

cmake_minimum_required(VERSION 3.4.1)

# build native_app_glue as a static lib
set(${CMAKE_C_FLAGS}, "${CMAKE_C_FLAGS}")
add_library(native_app_glue STATIC
     ${ANDROID_NDK}/sources/android/native_app_glue/android_native_app_glue.c)

# now build app's shared lib
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=gnu++11 -Wall -Werror")

# Export ANativeActivity_onCreate(),
# Refer to: https://github.com/android-ndk/ndk/issues/381.
set(CMAKE_SHARED_LINKER_FLAGS
     "${CMAKE_SHARED_LINKER_FLAGS} -u ANativeActivity_onCreate")

add_library(native-activity SHARED main.cpp)

target_include_directories(native-activity PRIVATE
     ${ANDROID_NDK}/sources/android/native_app_glue)

# add lib dependencies
target_link_libraries(native-activity
     android
     native_app_glue
     EGL
     GLESv1_CM
     log)
File CMakeLists.txt
hide ↴
#
# Copyright (C) The Android Open Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

cmake_minimum_required(VERSION 3.4.1)

# build native_app_glue as a static lib
set(${CMAKE_C_FLAGS}, "${CMAKE_C_FLAGS}")
add_library(native_app_glue STATIC
     ${ANDROID_NDK}/sources/android/native_app_glue/android_native_app_glue.c)

# now build app's shared lib
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=gnu++11 -Wall -Werror")

# Export ANativeActivity_onCreate(),
# Refer to: https://github.com/android-ndk/ndk/issues/381.
set(CMAKE_SHARED_LINKER_FLAGS
     "${CMAKE_SHARED_LINKER_FLAGS} -u ANativeActivity_onCreate")

add_library(native-activity
          SHARED
          main.cpp
          my_graphic.cpp
)

target_include_directories(native-activity PRIVATE
     ${ANDROID_NDK}/sources/android/native_app_glue)

# add lib dependencies
target_link_libraries(native-activity
     android
     native_app_glue
     EGL
     GLESv1_CM
     log)

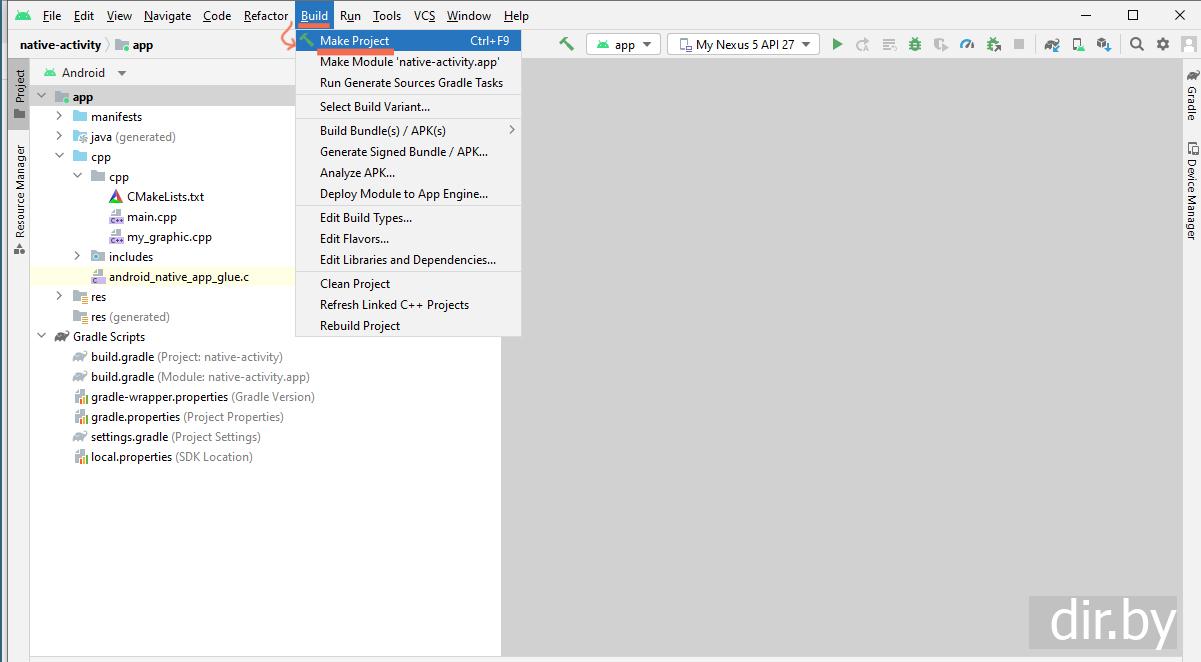

Step 3. Compile the project
