I've written an app that has a Load photo from Gallery button, and when clicked, I call the standard functionality to select a photo from the Gallery:

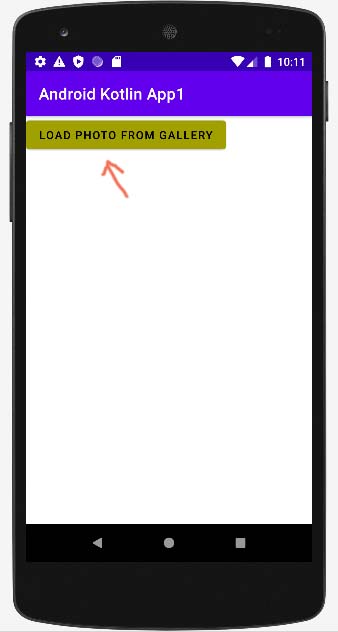

I click on the Load photo from Gallery button:

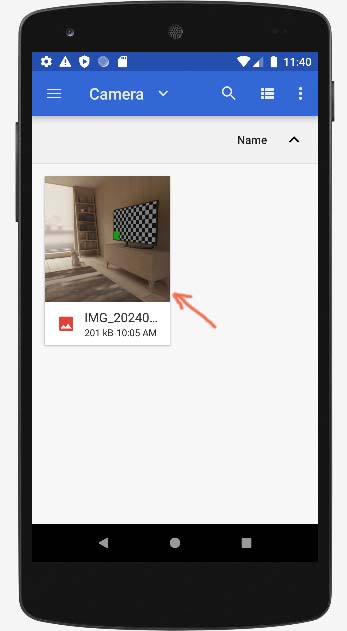

The Android system shows a folder with photos
I choose a photo:

My app gets the path to the photo

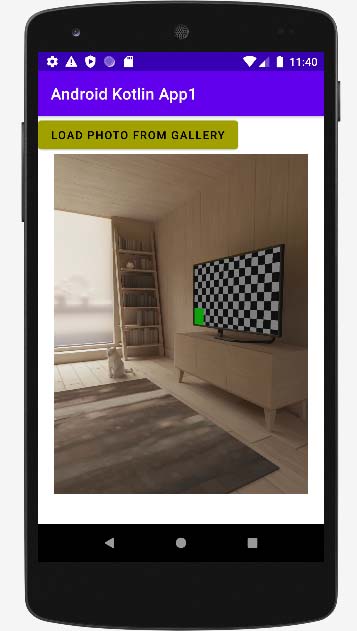

and displays the selected photo:

Step 1. Creating a new project

Create a new simple project "Empty Views Activity" on Kotlin in Android Studio ...

Step 2. Let's change the code in the file MainActivity.kt

The color indicates that a new code has been added.

File MainActivity.kt

package com.example.androidkotlinapp1

import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import android.content.Intent
import android.content.Intent.ACTION_OPEN_DOCUMENT
import android.net.Uri
import android.widget.Button
import android.widget.ImageView

class MainActivity : AppCompatActivity() {

     val MY_REQUEST_CODE1 = 100

     override fun onCreate(savedInstanceState: Bundle?) {
          super.onCreate(savedInstanceState)
          setContentView(R.layout.activity_main)

          val myButton = findViewById(R.id.button1) as Button

          myButton.setOnClickListener {
               val intent = Intent(ACTION_OPEN_DOCUMENT)
               intent.addCategory(Intent.CATEGORY_OPENABLE)
               intent.type = "*/*"
               intent.putExtra(Intent.EXTRA_MIME_TYPES, arrayOf("image/*", "video/*"))
               startActivityForResult(intent, MY_REQUEST_CODE1);
          }
     }

     // I override system function
     override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
          super.onActivityResult(requestCode, resultCode, data)

          if (resultCode == RESULT_OK && requestCode == MY_REQUEST_CODE1) {

               val uriFilePath_to_gallery = data?.data
               show_URI_in_ImageView(uriFilePath_to_gallery)

          }
     }

     // my function for image view
     fun show_URI_in_ImageView(uri: Uri?)
     {
          val myImageView = findViewById(R.id.imageView1) as ImageView
          myImageView.setImageURI(uri)
     }
}

Step 2. Let's change the code in the file activity_main.xml

In the activity_main.xml file, add the following graphic elements:

LinearLayout

This is a layer where elements are displayed one after the other vertically or horizontally (I have it vertically because the android:orientation="vertical parameter is set)

Button

It's a button

ImageView

This is to display the picture

The color indicates that a new code has been added.

Xml File activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
     xmlns:app="http://schemas.android.com/apk/res-auto"
     xmlns:tools="http://schemas.android.com/tools"
     android:layout_width="match_parent"
     android:layout_height="match_parent"
     tools:context=".MainActivity">

     <LinearLayout
          android:layout_width="match_parent"
          android:layout_height="match_parent"
          android:orientation="vertical">

          <Button
               android:id="@+id/button1"
               android:layout_width="wrap_content"
               android:layout_height="wrap_content"
               android:backgroundTint="#A0A000"
               android:textColor="#000000"
               android:text="Load photo from Gallery" />

          <ImageView
               android:id="@+id/imageView1"
               android:layout_width="match_parent"
               android:layout_height="wrap_content"
               tools:srcCompat="@tools:sample/avatars" />
     </LinearLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

Explanation

I wonder what path we will see when we select the photo from the gallery

When we select a photo from the gallery, we will see uri:
content://com.android.providers.media.documents/document/image%3A16

Question: How do I get the path to the file from this uri?
Answer: This uri was generated by the system Provider. I wouldn't recommend converting uri to a file path, because there's no guarantee that it will always work. Because only temporary permissions can be allocated to a file by the system.

Problem! Working with uri from the gallery is not very convenient for me. When I save uri to the database in a project at work, then this uri does not always work (after a few days) - the picture for this uri is not displayed.
Decision:
Step 1. I'm creating an empty file inside my app folder (there's a getExternalFilesDir function in Kotlin).
Step 2. I read the contents (content) from the uri gallery and save it to my empty file.
Step 3. I get uri at the location of my file

Download an example:

AndroidKotlinApp1_choose_photo_from_gallery.zip ...
size: 720 kb

Changes 1

Created a new file MyFileUtils.kt

package com.example.androidkotlinapp1

import android.content.ContentResolver
import android.content.Context
import android.net.Uri
import android.webkit.MimeTypeMap
import androidx.core.content.FileProvider
import java.io.File
import java.io.InputStream

class MyFileUtils {

     fun copyUriContentToFileInsideApp(context: Context, uri: Uri, filenameWithoutExtension: String): Uri?
     {
          val fileExtension = getFileExtensionFromUri(context, uri);
          val folderApplication = context.getExternalFilesDir(android.os.Environment.DIRECTORY_PICTURES)
          val fileDest = File(folderApplication, filenameWithoutExtension + '.' + fileExtension)

          val uriDest = FileProvider.getUriForFile(
               context, "${BuildConfig.APPLICATION_ID}.fileprovider", fileDest
          )

          // get stream by uri
          val streamSource = context.contentResolver.openInputStream(uri)

          // store source stream to fileDest
          if (fileDest!=null && streamSource!=null)
          {
               streamSource.use { input ->
                    fileDest.outputStream().use { output ->
                         input.copyTo(output)
                         return uriDest
                    }
               }
          }
          return null
     }

     private fun getFileExtensionFromUri(context: Context, uri:Uri): String? {
          return if (uri.scheme == ContentResolver.SCHEME_CONTENT) {
               val mime = MimeTypeMap.getSingleton()
               mime.getExtensionFromMimeType(context.contentResolver.getType(uri))
          } else {
               MimeTypeMap.getFileExtensionFromUrl(Uri.fromFile(File(uri.path)).toString())
          }
     }
}

Changes 2

Created a new file inside the folder:

D:\AndroidKotlinApp1

app

src

main

res

xml

File file_paths.xml

<?xml version="1.0" encoding="utf-8"?>
<paths>
     <external-path
          name="pictures"
          path="Android/data/com.example.androidkotlinapp1/files/Pictures" />
     <external-path
          name="music"
          path="Android/data/com.example.androidkotlinapp1/files/Music" />
     <external-path
          name="docs"
          path="Android/data/com.example.androidkotlinapp1/files/Documents" />
     <external-path
          name="pdf"
          path="." />
</paths>

Changes 3

File AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
     xmlns:tools="http://schemas.android.com/tools">

     <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>
     <uses-permission android:name="android.permission.READ_MEDIA_IMAGES"/>
     <uses-permission android:name="android.permission.READ_MEDIA_VIDEO"/>
     <uses-permission android:name="android.permission.READ_MEDIA_AUDIO"/>

     <application
          android:allowBackup="true"
          android:dataExtractionRules="@xml/data_extraction_rules"
          android:fullBackupContent="@xml/backup_rules"
          android:icon="@mipmap/ic_launcher"
          android:label="@string/app_name"
          android:supportsRtl="true"
          android:theme="@style/Theme.AndroidKotlinApp1"
          tools:targetApi="31">
          <activity
               android:name=".MainActivity"
               android:exported="true">
               <intent-filter>
                    <action android:name="android.intent.action.MAIN" />

                    <category android:name="android.intent.category.LAUNCHER" />
               </intent-filter>
          </activity>

          <provider
               android:name="androidx.core.content.FileProvider"
               android:authorities="${applicationId}.fileprovider"
               android:exported="false"
               android:grantUriPermissions="true">
               <meta-data
                    android:name="android.support.FILE_PROVIDER_PATHS"
                    android:resource="@xml/file_paths" />
          </provider>

     </application>

</manifest>

Changes 4

File MainActivity.kt

package com.example.androidkotlinapp1

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.content.Intent
import android.content.Intent.ACTION_OPEN_DOCUMENT
import android.net.Uri
import android.widget.Button
import android.widget.ImageView
import androidx.core.content.ContentProviderCompat.requireContext

class MainActivity : AppCompatActivity() {
     val MY_REQUEST_CODE1 = 100

     override fun onCreate(savedInstanceState: Bundle?) {
          super.onCreate(savedInstanceState)
          setContentView(R.layout.activity_main)

          val myButton = findViewById(R.id.button1) as Button

          myButton.setOnClickListener {
               val intent = Intent(ACTION_OPEN_DOCUMENT)
               intent.addCategory(Intent.CATEGORY_OPENABLE)
               intent.type = "*/*"
               intent.putExtra(Intent.EXTRA_MIME_TYPES, arrayOf("image/*", "video/*"))
               startActivityForResult(intent, MY_REQUEST_CODE1);
          }
     }

     // I override system function
     override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
          super.onActivityResult(requestCode, resultCode, data)

          if (resultCode == RESULT_OK && requestCode == MY_REQUEST_CODE1) {

               val uriContent_selected_from_gallery = data?.data

               val filenameWithoutExtension = "my_picture1"
               val newUri = MyFileUtils().copyUriContentToFileInsideApp(baseContext!!, uriContent_selected_from_gallery!!, filenameWithoutExtension);

               show_URI_in_ImageView(newUri)

          }
     }

     // my function for image view
     fun show_URI_in_ImageView(uriContent: Uri?)
     {
          val myImageView = findViewById(R.id.imageView1) as ImageView
          myImageView.setImageURI(uriContent)
     }
}

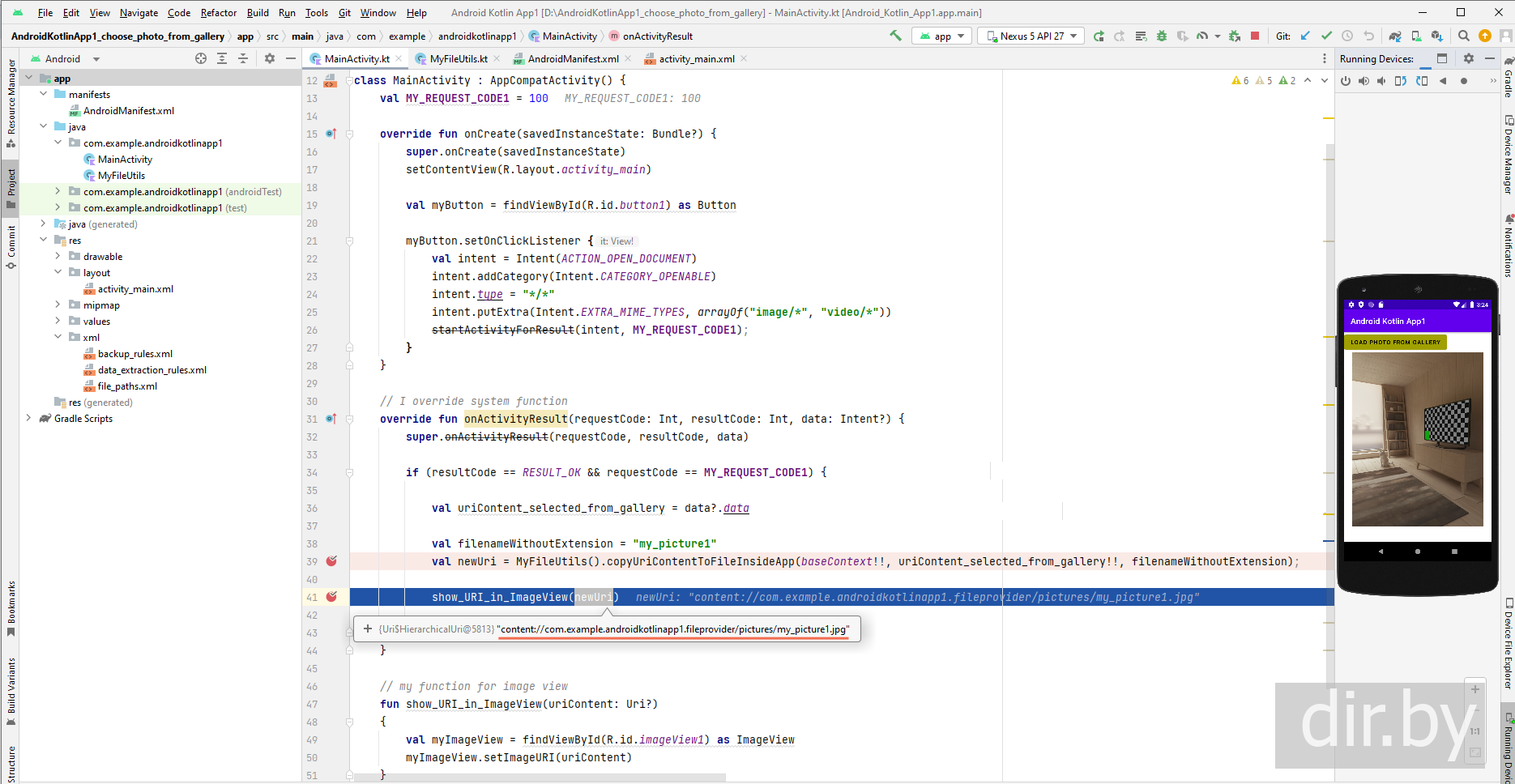

Let's run the program

Let's see a new uri for the picture:

content://com.example.androidkotlinapp1.fileprovider/pictures/my_picture1.jpg
