Description

I've written an app that has a I want make photo button, and when clicked, I call the standard function to take a photo:

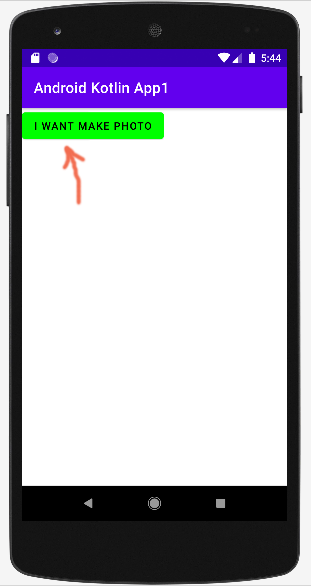

I click on the I want make photo button:

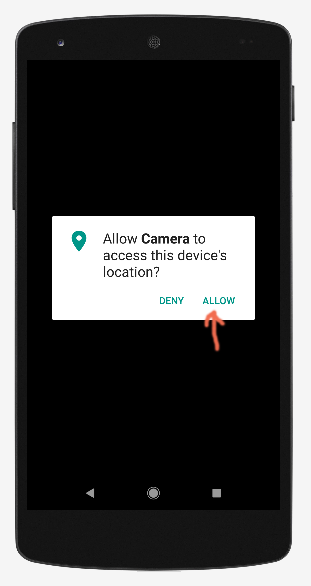

I click Allow Camera:

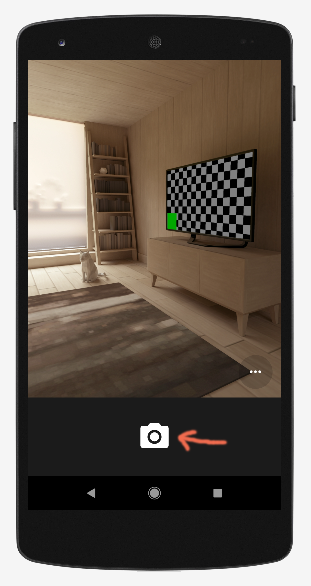

I press the standard phone
button to take a photo:

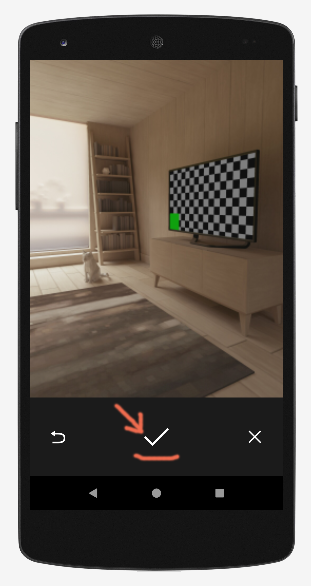

Agree:

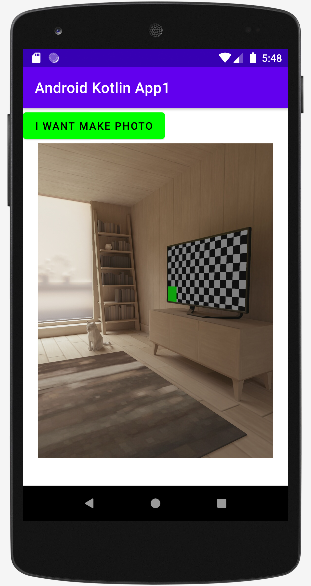

My app uploads a new photo and displays:

Step 1. Creating a new project

Create a new simple project "Empty Views Activity" on Kotlin in Android Studio ...

Step 2. Let's change the code in the file MainActivity.kt

The color indicates that a new code has been added.

File MainActivity.kt

package com.example.androidkotlinapp1

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.os.Environment.DIRECTORY_PICTURES
import android.provider.MediaStore.ACTION_IMAGE_CAPTURE
import android.provider.MediaStore.EXTRA_OUTPUT
import android.widget.Button
import android.widget.ImageView
import androidx.core.content.FileProvider
import android.content.Context
import android.content.Intent
import android.net.Uri
import java.io.File
import java.text.SimpleDateFormat
import java.util.*

class MainActivity : AppCompatActivity() {

     val MY_REQUEST_CODE1 = 100
     var UriFilePath_to_SaveImage:Uri? = null

     override fun onCreate(savedInstanceState: Bundle?) {
          super.onCreate(savedInstanceState)
          setContentView(R.layout.activity_main)

          val myButton = findViewById(R.id.button1) as Button

          myButton.setOnClickListener {
               UriFilePath_to_SaveImage = createURIpath(baseContext)
               val intent = Intent(ACTION_IMAGE_CAPTURE)
               intent.putExtra(EXTRA_OUTPUT, UriFilePath_to_SaveImage)
               startActivityForResult(intent, MY_REQUEST_CODE1);
          }
     }

     // I override system function
     override fun onActivityResult(requestCode: Int, resultCode: Int, intent: Intent?) {
          super.onActivityResult(requestCode, resultCode, intent)
          if (resultCode == RESULT_OK && requestCode == MY_REQUEST_CODE1) {
               show_URI_in_ImageView(UriFilePath_to_SaveImage)
          }
     }

     // my function for output path (where put new image)
     fun createURIpath(context: Context): Uri {
          val fileName = SimpleDateFormat("yyyyMMdd_HHmmss", Locale.GERMAN).format(Date())
          val path = getExternalFilesDir(DIRECTORY_PICTURES)
          val file = File(path, "$fileName.jpg")
          return FileProvider.getUriForFile( context, "${BuildConfig.APPLICATION_ID}.fileprovider", file)
     }

     // my function for image view
     fun show_URI_in_ImageView(uri: Uri?)
     {
          val myImageView = findViewById(R.id.imageView1) as ImageView
          myImageView.setImageURI(uri)
     }
}

Explanation:

1) find my button by id

val myButton = findViewById(R.id.button1) as Button

Note!
Here's how I added id to res/layout/activity_main.xml:
@+id/ is a system Android expression
button1 is id of my button.

...
<Button
     android:id="@+id/button1"
     android:layout_width="wrap_content"
     android:layout_height="wrap_content"
     android:backgroundTint="#00FF00"
     android:textColor="#000000"
     android:text="I want make photo" />
...

2) By pressing my button, open the system camera to take a photo:

...
myButton.setOnClickListener {
     UriFilePath_to_SaveImage = createURIpath(baseContext)
     val intent = Intent(ACTION_IMAGE_CAPTURE)
     intent.putExtra(EXTRA_OUTPUT, UriFilePath_to_SaveImage)
     startActivityForResult(intent, MY_REQUEST_CODE1);
}
...

Note 1
This is the button press handler: myButton.setOnClickListener { ... }
When the button is clicked, the code inside the parentheses will be called.

Note 2
Create the Intent object.
Intent is a class to store parameters.
Intent is needed to pass these parameters to Activity
The startActivityForResult method shows Activity, performs some action in Activity, and returns with the result.
In Intent I specified:
ACTION_IMAGE_CAPTURE this means that I will take a photo with my phone's camera
EXTRA_OUTPUT is the uri path and the photos will be saved there

3) When you take a photo from your phone's camera, the system function will be called:
override fun onActivityResult

override fun onActivityResult(requestCode: Int, resultCode: Int, intent: Intent?) {
     super.onActivityResult(requestCode, resultCode, intent)
     if (resultCode == RESULT_OK && requestCode == MY_REQUEST_CODE1) {
          show_URI_in_ImageView(UriFilePath_to_SaveImage)
     }
}

Note 1
Be sure to call the basic method:
super.onActivityResult(requestCode, resultCode, intent)

Note 2
By requestCode I determine which Activity returned the result:

if (resultCode == RESULT_OK && requestCode == MY_REQUEST_CODE1)

MY_REQUEST_CODE1 I use at the very top of the file this can be any number:

val MY_REQUEST_CODE1 = 100

I also pass MY_REQUEST_CODE1 to the Activity run:

startActivityForResult(intent, MY_REQUEST_CODE1);

Note 3
Once the photo is taken, I call my show_URI_in_ImageView(UriFilePath_to_SaveImage) function to show the photo on the screen next to my button.

The interesting thing is that:
• The photo taken will be saved by my uri in my app folder

content://com.example.androidkotlinapp1.fileprovider/pictures/20240103_191203.jpg

• But if we were to choose a photo from the gallery, here's my Kotlin app:
Android Kotlin choose photo from gallery and draws in the application | Android Studio | Kotlin ...
Then uri will come to us from data in the function:

override fun onActivityResult(requestCode: Int, resultCode: Int, intent: Intent?) {
super.onActivityResult(requestCode, resultCode, intent)
val uriFromGallery = intent?.data
}

4) My Function createURIpath
My function creates an empty file and returns the uri path

fun createURIpath(context: Context): Uri {
          val fileName = SimpleDateFormat("yyyyMMdd_HHmmss", Locale.GERMAN).format(Date())
          val path = getExternalFilesDir(DIRECTORY_PICTURES)
          val file = File(path, "$fileName.jpg")
          return FileProvider.getUriForFile( context, "${BuildConfig.APPLICATION_ID}.fileprovider", file)
     }

Note 1
val fileName = SimpleDateFormat("yyyyMMdd_HHmmss", Locale.GERMAN).format(Date())
The file name I do as the date and time, for example: 3 january 2024 19:38:37
val fileName = "20240103_193837.jpg"

Note 2
val path = getExternalFilesDir(DIRECTORY_PICTURES)
DIRECTORY_PICTURES This is the Android system constant, there is more: DIRECTORY_MUSIC, DIRECTORY_MOVIES, DIRECTORY_DOCUMENTS

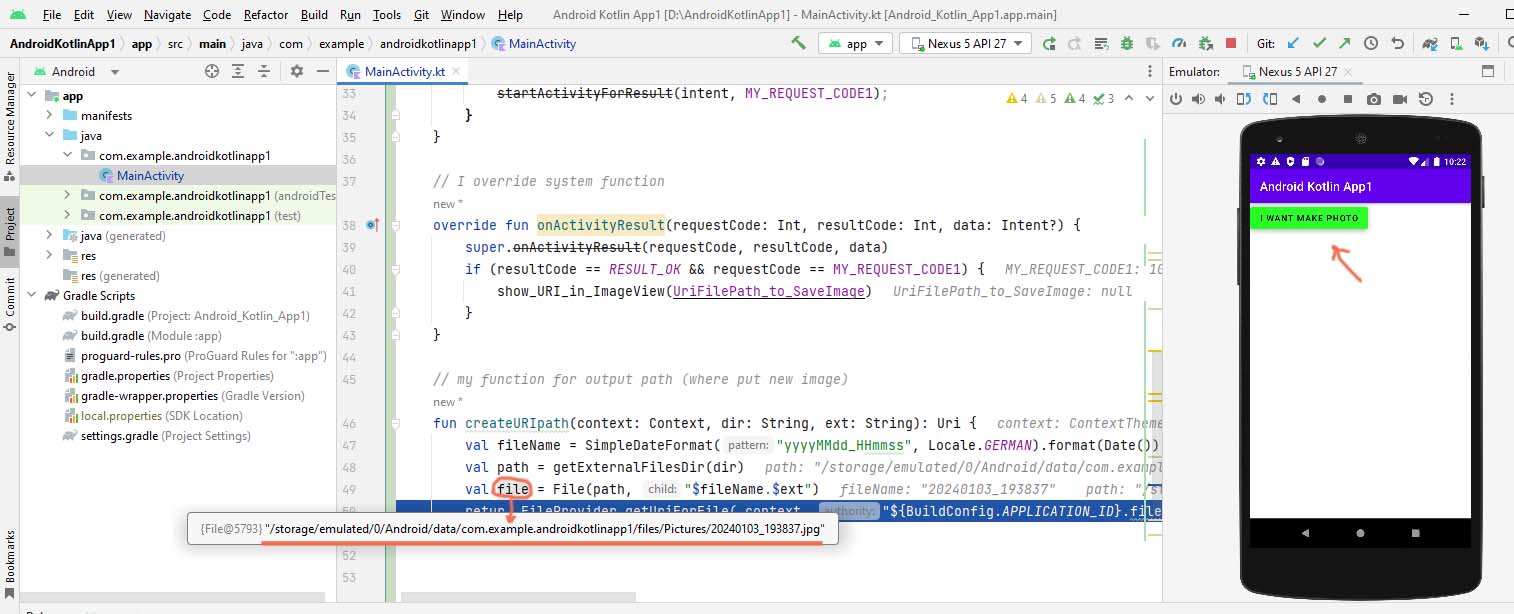

getExternalFilesDir is a Android system function that returns the full path to the directory where our application can place persistent files
path in our case, this is the folder where the images will be saved, because we use DIRECTORY_PICTURES
path = "/storage/emulated/0/Android/data/com.example.androidkotlinapp1/files/Pictures"
Read more: What is getExternalFilesDir in Android Studio, Kotlin ...

Note 3
val file = File(path, "$fileName.jpg")
Create an empty jpg file in the path folder named fileName

On a note 4
return FileProvider.getUriForFile( context, "${BuildConfig.APPLICATION_ID}.fileprovider", file)
FileProvider.getUriForFile is a system function that uses a file and application id to return the uri path.

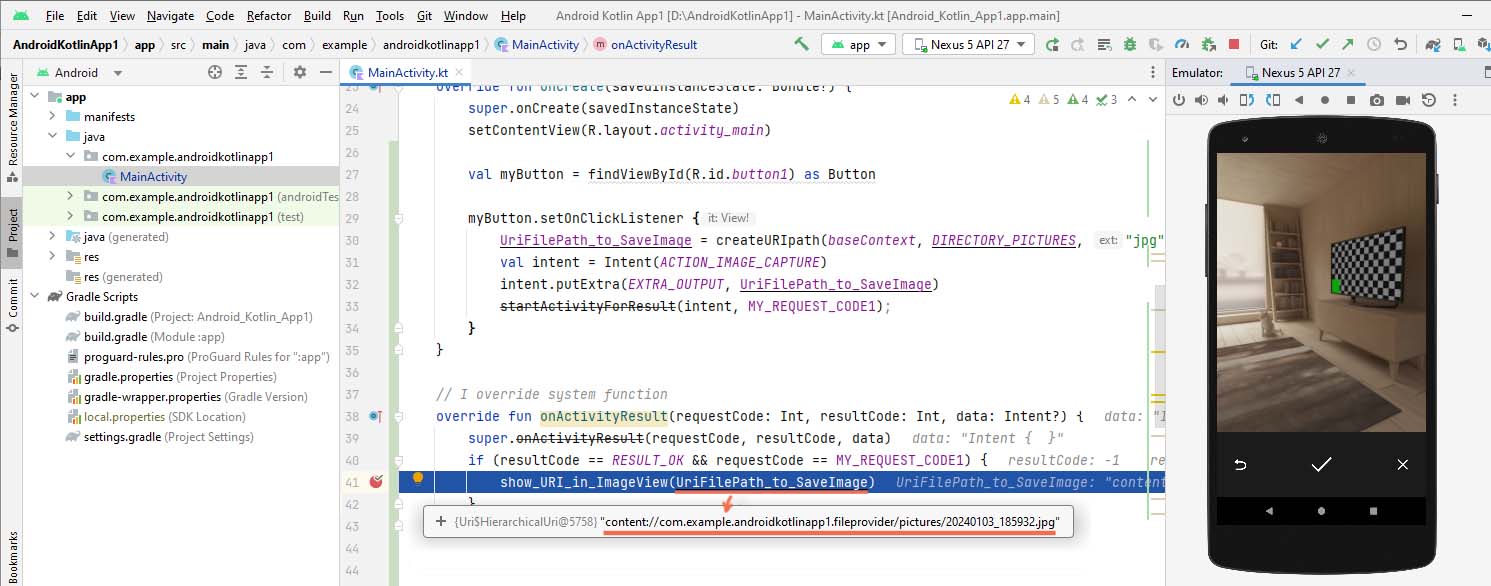

The uri path will return:

content://com.example.androidkotlinapp1.fileprovider/pictures/20240103_191203.jpg

5) My Function show_URI_in_ImageView
My function draws a picture in ImageView by uri

fun show_URI_in_ImageView(uri: Uri?)
{
val myImageView = findViewById(R.id.imageView1) as ImageView
myImageView.setImageURI(uri)
}

Note!
Here's how I added id to res/layout/activity_main.xml:

...
<ImageView
     android:id="@+id/imageView1"
     android:layout_width="match_parent"
     android:layout_height="wrap_content"
     tools:srcCompat="@tools:sample/avatars" />
...

Step 3. Let's change the code in the file activity_main.xml

In the activity_main.xml file, add the following graphic elements:

LinearLayout

This is a layer where elements are displayed one after the other vertically or horizontally (I have it vertically because the android:orientation="vertical parameter is set)

Button

It's a button

ImageView

To display a picture

The color indicates that a new code has been added.

File activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
     xmlns:app="http://schemas.android.com/apk/res-auto"
     xmlns:tools="http://schemas.android.com/tools"
     android:layout_width="match_parent"
     android:layout_height="match_parent"
     tools:context=".MainActivity">

     <LinearLayout
          android:layout_width="match_parent"
          android:layout_height="match_parent"
          android:orientation="vertical">

          <Button
               android:id="@+id/button1"
               android:layout_width="wrap_content"
               android:layout_height="wrap_content"
               android:backgroundTint="#00FF00"
               android:textColor="#000000"
               android:text="I want make photo" />

          <ImageView
               android:id="@+id/imageView1"
               android:layout_width="match_parent"
               android:layout_height="wrap_content"
               tools:srcCompat="@tools:sample/avatars" />
     </LinearLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

Step 4. Let's change the code in the file AndroidManifest.xml

File AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
     xmlns:tools="http://schemas.android.com/tools">

     <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>
     <uses-permission android:name="android.permission.READ_MEDIA_IMAGES"/>
     <uses-permission android:name="android.permission.READ_MEDIA_VIDEO"/>
     <uses-permission android:name="android.permission.READ_MEDIA_AUDIO"/>

     <application
          android:allowBackup="true"
          android:dataExtractionRules="@xml/data_extraction_rules"
          android:fullBackupContent="@xml/backup_rules"
          android:icon="@mipmap/ic_launcher"
          android:label="@string/app_name"
          android:supportsRtl="true"
          android:theme="@style/Theme.AndroidKotlinApp1"
          tools:targetApi="31">
          <activity
               android:name=".MainActivity"
               android:exported="true">
               <intent-filter>
                    <action android:name="android.intent.action.MAIN" />

                    <category android:name="android.intent.category.LAUNCHER" />
               </intent-filter>
          </activity>

          <provider
               android:name="androidx.core.content.FileProvider"
               android:authorities="${applicationId}.fileprovider"
               android:exported="false"
               android:grantUriPermissions="true">
               <meta-data
                    android:name="android.support.FILE_PROVIDER_PATHS"
                    android:resource="@xml/file_paths" />
          </provider>

     </application>

</manifest>

Why is ${applicationId} used in the manifest file?
Why is ${BuildConfig.APPLICATION_ID} used in the MainActivity.kt file?

Explanation:
This is the same value "com.example.androidkotlinapp1" and is taken from the build.gradle file.
Learn more:

File AndroidManifest.xml

What is ${applicationId}

File AndroidManifest.xml

...
<provider
     android:name="androidx.core.content.FileProvider"
     android:authorities="${applicationId}.fileprovider"
     android:exported="false"
     android:grantUriPermissions="true">
     <meta-data
          android:name="android.support.FILE_PROVIDER_PATHS"
          android:resource="@xml/file_paths" />
</provider>...

Note!
${applicationId} this means that the variable applicationId is taken from the file build.gradle:

android {
     namespace 'com.example.androidkotlinapp1'
     compileSdk 33

     defaultConfig {
          applicationId "com.example.androidkotlinapp1"
          minSdk 27
          targetSdk 33
          versionCode 1
          versionName "1.0"

          testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
     }
     ...
}
dependencies {
     ...
}

File MainActivity.kt

What is ${BuildConfig.APPLICATION_ID}

File MainActivity.kt

fun createURIpath(context: Context, dir: String, ext: String): Uri {
...
return FileProvider.getUriForFile(context, "${BuildConfig.APPLICATION_ID}.fileprovider", file)
}
...

Note 1
FileProvider.getUriForFile is a system function that uses a file and application id to return the uri path.

Note 2
BuildConfig.APPLICATION_ID is a variable.
The BuildConfig class is created itself when the project is compiled and is located in the build folder:

public final class BuildConfig {
     public static final String APPLICATION_ID = "com.example.androidkotlinapp1";
     public static final int VERSION_CODE = 1;
     public static final String VERSION_NAME = "1.0";
...
}

The values are taken from the file build.gradle from the defaultConfig section.
File build.gradle:

Step 5. Let's create a new file file_paths.xml

Let's create a file inside the folder:

D:\AndroidKotlinApp1

app

src

main

res

xml

File file_paths.xml

<?xml version="1.0" encoding="utf-8"?>
<paths>
     <external-path
          name="pictures"
          path="Android/data/com.example.androidkotlinapp1/files/Pictures" />
     <external-path
          name="music"
          path="Android/data/com.example.androidkotlinapp1/files/Music" />
     <external-path
          name="docs"
          path="Android/data/com.example.androidkotlinapp1/files/Documents" />
     <external-path
          name="pdf"
          path="." />
</paths>

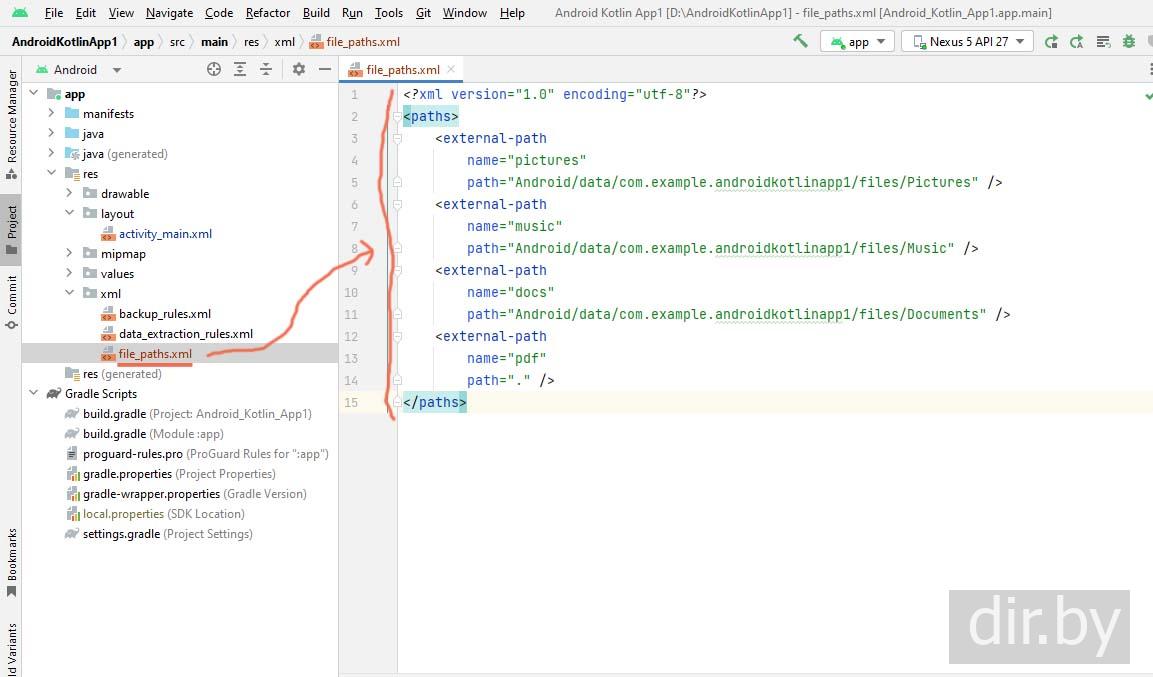

Just like that:

Explanation:

File AndroidManifest.xml

The <provider>...</provider>... section refers to the xml file file_paths

File AndroidManifest.xml

File file_paths.xml make access to specific path by name

File file_paths.xml

Note!
In the MainActivity.kt file, I call the getExternalFilesDir system function
val path = getExternalFilesDir(DIRECTORY_PICTURES)
DIRECTORY_PICTURES This is the Android system constant, there is more: DIRECTORY_MUSIC, DIRECTORY_MOVIES, DIRECTORY_DOCUMENTS
getExternalFilesDir is a Android system function that returns the full path to the directory where our application can place persistent files
path in our case, this is the folder where the images will be saved, because we use DIRECTORY_PICTURES
path = "/storage/emulated/0/Android/data/com.example.androidkotlinapp1/files/Pictures"
Read more: What is getExternalFilesDir in Android Studio, Kotlin ...

It is very very important: com.example.androidkotlinapp1 in path must be the same as com.example.androidkotlinapp1 in applicationId in build.gradle file

Step 6. Let's launch the project and see where the picture will be saved

The file will be saved to your phone here:

file path:

/storage/emulated/0/Android/data/com.example.androidkotlinapp1/files/Pictures/20240103_193837.jpg

URI:

content://com.example.androidkotlinapp1.fileprovider/pictures/20240103_191203.jpg

← Previous topic
Show a window with 2 buttons: yes, no and you don't need to add any resource, layout | I call the AlertDialog function in Kotlin | Android Studio

Next topic →
Android Kotlin choose photo from gallery and draws in the application | Android Studio | Kotlin ...
