WPF. Windows Presentation Foundation (standalone .exe file)

Конвертируем SVG в XAML(используя Adobe Illustrator), заполняем Path Data Geometry, показываем линии на экране | C# WPF приложение

посмотрели 4596 раз

обновлено: 23 June 2024

Шаг 1. Открываем картинку svg в Adobe Illustrator

Есть вот такая svg картинка:
Скачать ...

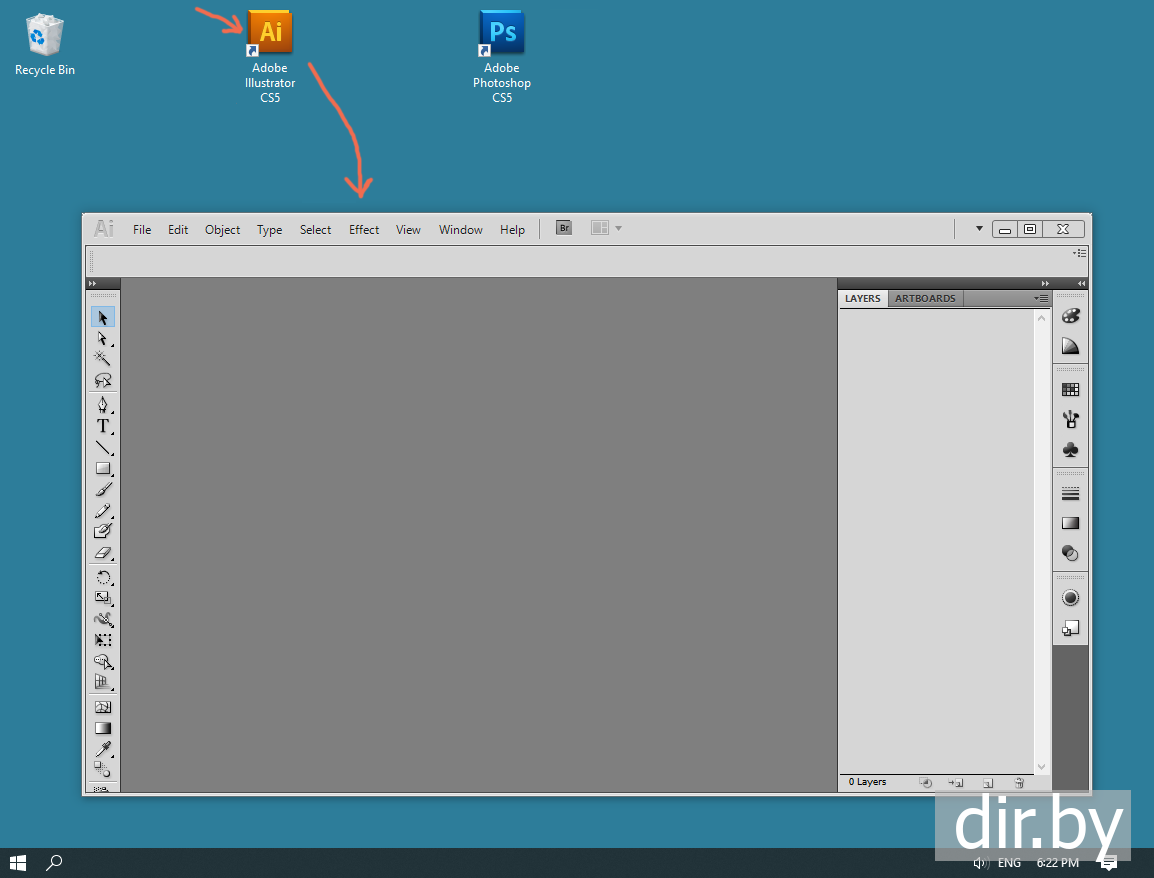

Открываем Adobe Illustrator CS5 ...
If you don't have Adobe Illustrator CS5 installed, you need to Download and install the trial version Adobe CS5 Master Collection ...

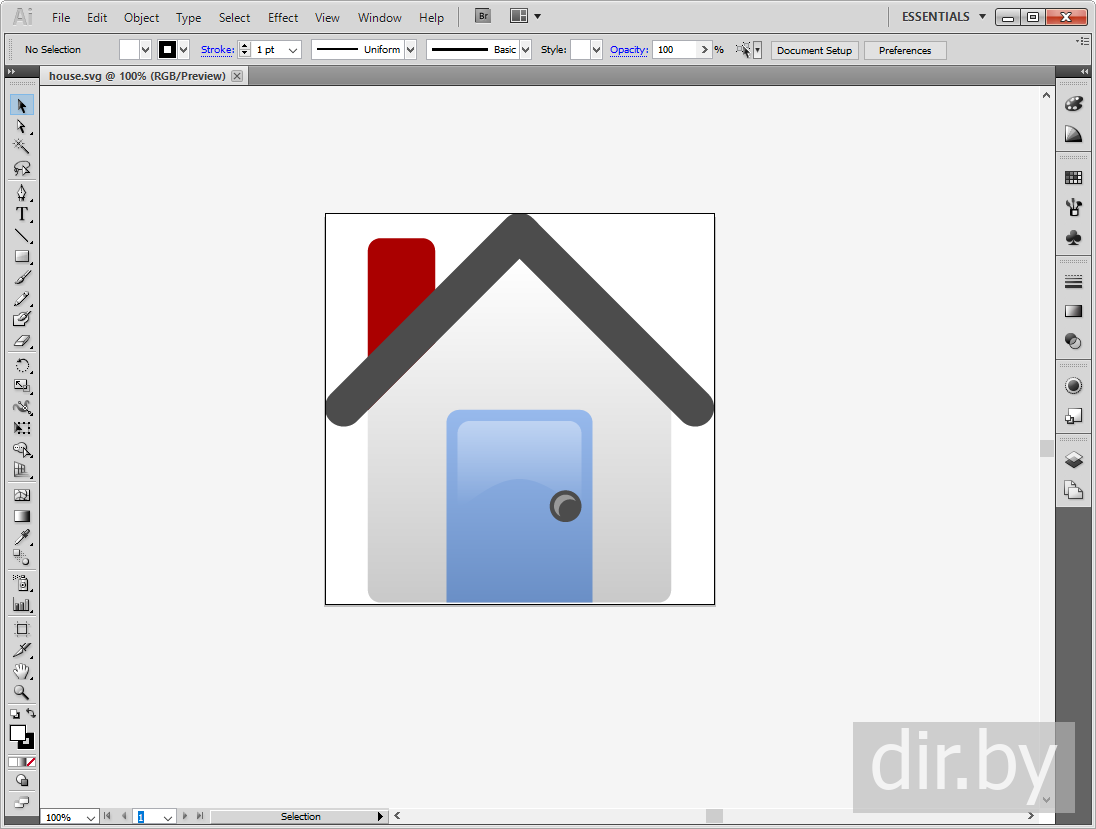

Открываем svg файл:

Шаг 2. Картинку svg конвертируем в XAML

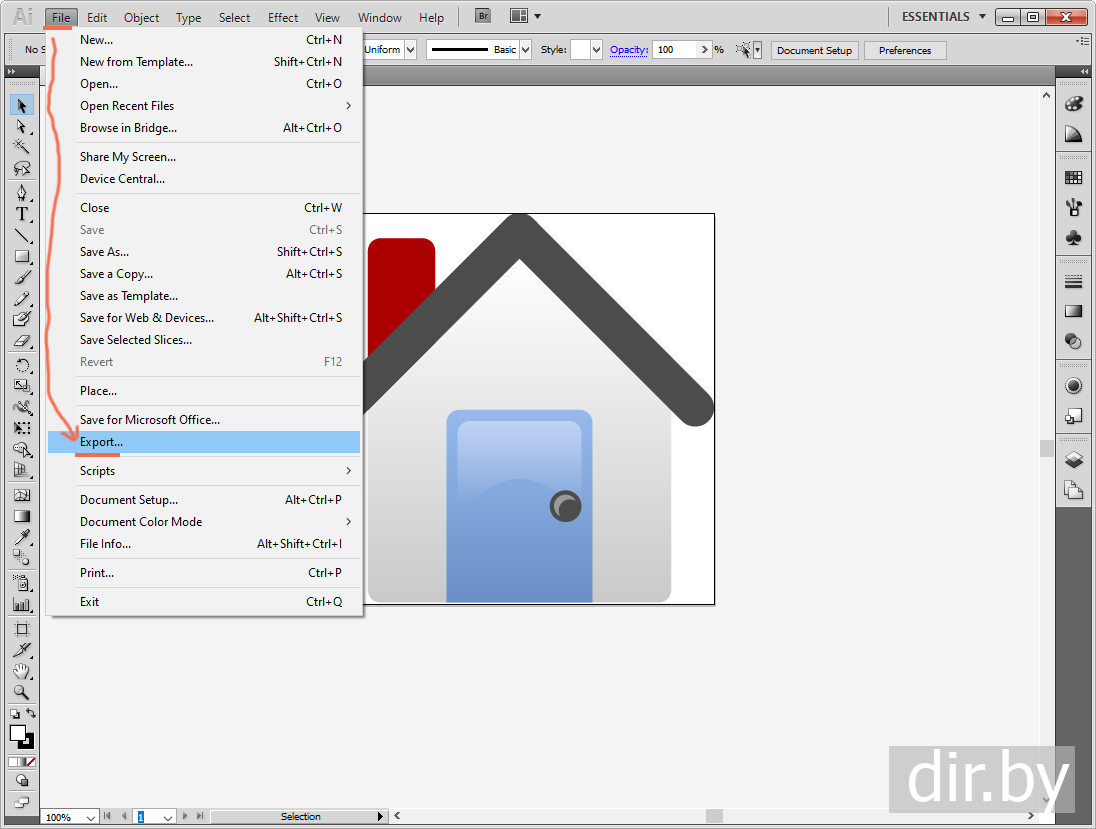

В Adobe Illustrator в меню нажимаем: File -> Export

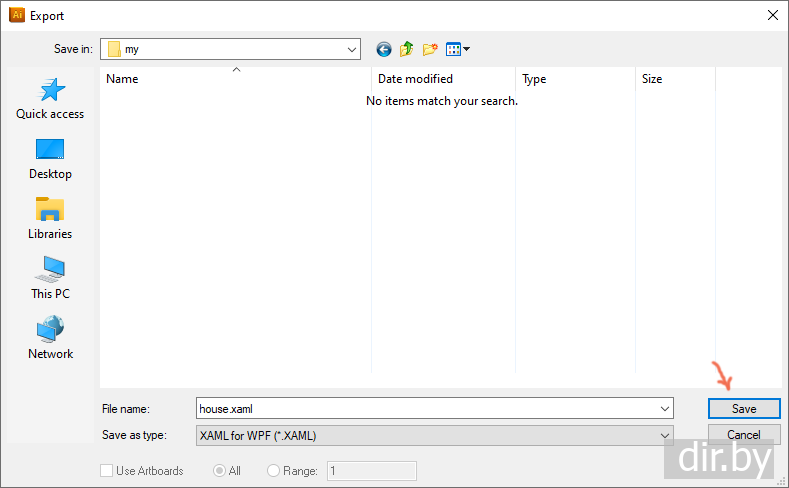

Выбираем опцию XAML for WPF

На заметку! В Adobe Illustrator по умолчанию опция XAML for WPF отсутствует.
Читаем как: поставить plugin в Adobe Illustrator чтобы опция XAML for WPF появилась ...

После конвертации получился вот такой файл:

house.xaml

<Viewbox Width="388.942" Height="390.873"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">

     <Canvas Width="388.942" Height="390.873">


          <Path Data="F1 M 346.016,196.922 L 194.471,45.265 L 42.925,196.922 L 42.925,376.744 C 42.925,378.489 43.291,380.148 43.931,381.661 C 44.571,383.173 45.469,384.540 46.613,385.684 C 47.757,386.829 49.124,387.726 50.637,388.367 C 52.149,389.006 53.809,389.373 55.554,389.373 L 194.471,389.373 L 333.387,389.373 C 335.133,389.373 336.793,389.006 338.305,388.367 C 339.819,387.726 341.184,386.829 342.329,385.684 C 343.473,384.540 344.372,383.173 345.010,381.661 C 345.651,380.148 346.016,378.489 346.016,376.744 L 346.016,196.922 Z">
               <Path.Fill>
                    <LinearGradientBrush MappingMode="Absolute" StartPoint="471.666,821.656" EndPoint="471.666,509.398">
                         <LinearGradientBrush.GradientStops>
                              <GradientStop Offset="0.00" Color="#ffc8c8c8"/>
                              <GradientStop Offset="1.00" Color="#ffffffff"/>
                         </LinearGradientBrush.GradientStops>
                         <LinearGradientBrush.Transform>
                              <MatrixTransform Matrix="1.102,0.000,0.000,1.102,-325.304,-516.092" />
                         </LinearGradientBrush.Transform>
                    </LinearGradientBrush>
               </Path.Fill>
          </Path>


          <Path Fill="#fff1f1f1" Data="F1 M 353.170,151.101 L 207.770,5.478 C 205.979,3.689 203.812,2.275 201.512,1.343 C 199.211,0.412 196.779,-0.038 194.248,0.002 C 191.813,0.037 189.409,0.525 187.207,1.455 C 185.005,2.385 183.005,3.757 181.283,5.478 L 35.772,151.101 L 35.772,204.075 L 194.471,45.265 L 353.170,204.075 L 353.170,151.101 Z"/>


          <Path Fill="#ffb2b2b2" Data="F1 M 346.016,143.949 L 207.770,5.478 C 205.979,3.689 203.812,2.275 201.512,1.343 C 199.211,0.412 196.779,-0.038 194.248,0.002 C 191.813,0.037 189.409,0.525 187.207,1.455 C 185.005,2.385 183.005,3.757 181.283,5.478 L 42.925,143.949 L 42.925,196.922 L 194.471,45.265 L 346.016,196.922 L 346.016,143.949 Z"/>


          <Path Fill="#ffa90000" Data="F1 M 55.542,25.248 C 53.797,25.248 52.164,25.640 50.652,26.280 C 49.139,26.920 47.767,27.788 46.623,28.932 C 45.478,30.077 44.577,31.449 43.937,32.961 C 43.296,34.474 42.938,36.141 42.938,37.885 L 42.938,196.918 L 109.987,129.799 L 109.987,37.885 C 109.987,36.141 109.629,34.474 108.989,32.961 C 108.349,31.449 107.447,30.077 106.303,28.932 C 105.158,27.788 103.786,26.920 102.273,26.280 C 100.761,25.640 99.094,25.248 97.349,25.248 L 55.542,25.248 Z"/>


          <Path Fill="#ff4b4b4b" Data="F1 M 194.248,0.002 C 189.378,0.072 184.728,2.036 181.283,5.478 L 5.486,181.388 C -1.829,188.702 -1.829,200.561 5.486,207.875 C 12.800,215.189 24.659,215.189 31.973,207.875 L 194.471,45.265 L 356.969,207.875 C 364.284,215.189 376.143,215.189 383.456,207.875 C 390.770,200.561 390.770,188.702 383.456,181.388 L 207.770,5.478 C 204.189,1.899 199.311,-0.077 194.248,0.002 L 194.248,0.002 Z"/>


          <Path StrokeThickness="3.0" Stroke="#ff000000" StrokeStartLineCap="Round" StrokeEndLineCap="Round" StrokeLineJoin="Round" Data="F1 M 267.338,389.373 L 121.604,389.373 L 121.604,209.551 C 121.604,207.806 121.970,206.146 122.610,204.634 C 123.250,203.122 124.147,201.754 125.292,200.611 C 126.436,199.466 127.803,198.569 129.315,197.928 C 130.828,197.289 132.488,196.922 134.232,196.922 L 254.709,196.922 C 256.454,196.922 258.114,197.289 259.627,197.928 C 261.139,198.569 262.506,199.466 263.651,200.611 C 264.794,201.754 265.692,203.122 266.333,204.634 C 266.973,206.146 267.338,207.806 267.338,209.551 L 267.338,389.373 Z">
               <Path.Fill>
                    <LinearGradientBrush MappingMode="Absolute" StartPoint="471.666,820.337" EndPoint="471.666,647.017">
                         <LinearGradientBrush.GradientStops>
                              <GradientStop Offset="0.00" Color="#ff698ec5"/>
                              <GradientStop Offset="1.00" Color="#ff96b8eb"/>
                         </LinearGradientBrush.GradientStops>
                         <LinearGradientBrush.Transform>
                              <MatrixTransform Matrix="1.102,0.000,0.000,1.102,-325.304,-516.092" />
                         </LinearGradientBrush.Transform>
                    </LinearGradientBrush>
               </Path.Fill>
          </Path>


          <Path Data="F1 M 145.251,207.938 C 143.507,207.938 141.839,208.296 140.327,208.937 C 138.814,209.577 137.442,210.479 136.298,211.623 C 135.153,212.767 134.286,214.139 133.646,215.652 C 133.006,217.165 132.613,218.832 132.613,220.577 L 132.613,288.177 L 132.613,290.209 L 132.923,290.209 C 135.822,301.217 162.261,265.758 194.463,265.758 C 226.665,265.758 253.137,301.217 256.038,290.209 L 256.313,290.209 L 256.313,288.177 L 256.313,220.577 C 256.313,218.832 255.954,217.165 255.314,215.652 C 254.674,214.139 253.772,212.767 252.627,211.623 C 251.483,210.479 250.112,209.577 248.598,208.937 C 247.086,208.296 245.418,207.938 243.674,207.938 L 145.251,207.938 Z">
               <Path.Fill>
                    <LinearGradientBrush MappingMode="Absolute" StartPoint="471.658,658.193" EndPoint="471.658,733.643">
                         <LinearGradientBrush.GradientStops>
                              <GradientStop Offset="0.00" Color="#ffffffff"/>
                              <GradientStop Offset="1.00" Color="#ffffffff"/>
                         </LinearGradientBrush.GradientStops>
                         <LinearGradientBrush.Transform>
                              <MatrixTransform Matrix="1.102,0.000,0.000,1.102,-325.304,-516.092" />
                         </LinearGradientBrush.Transform>
                    </LinearGradientBrush>
               </Path.Fill>
          </Path>


          <Path Fill="#ff4b4b4b" Data="F1 M 256.313,293.147 C 256.323,301.842 249.282,308.898 240.586,308.908 C 231.893,308.917 224.836,301.876 224.827,293.182 C 224.827,293.170 224.827,293.159 224.827,293.147 C 224.817,284.453 231.858,277.397 240.552,277.387 C 249.247,277.377 256.303,284.418 256.313,293.113 C 256.313,293.125 256.313,293.136 256.313,293.147 Z"/>


          <Path Opacity="0.5" Fill="#ffe5e5e5" Data="F1 M 240.575,281.738 C 234.274,281.738 229.141,286.836 229.141,293.136 C 229.141,297.424 231.635,301.035 235.133,302.986 C 234.937,302.632 234.604,302.363 234.445,301.987 C 233.867,300.622 233.549,299.120 233.549,297.544 C 233.549,295.969 233.867,294.467 234.445,293.102 C 235.022,291.737 235.891,290.519 236.924,289.486 C 237.958,288.454 239.174,287.619 240.540,287.042 C 241.905,286.463 243.408,286.146 244.983,286.146 C 246.557,286.146 248.059,286.463 249.424,287.042 C 249.798,287.199 250.072,287.500 250.424,287.696 C 248.475,284.187 244.870,281.738 240.575,281.738 Z"/>

     </Canvas>

</Viewbox>

Шаг 3. Создаем новый проект

Создаем новый проект WPF Application...
Внутри файла MainWindow.xaml добавим сгенерированный код:

<Window x:Class="WpfApp1.MainWindow"
          xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
          xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
          xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
          xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
          xmlns:local="clr-namespace:WpfApp1"
          mc:Ignorable="d"
          Title="MainWindow" Height="450" Width="800">
     <Grid>

     <Viewbox Width="388.942" Height="390.873"
     ...
     </Viewbox>

     </Grid>
</Window>

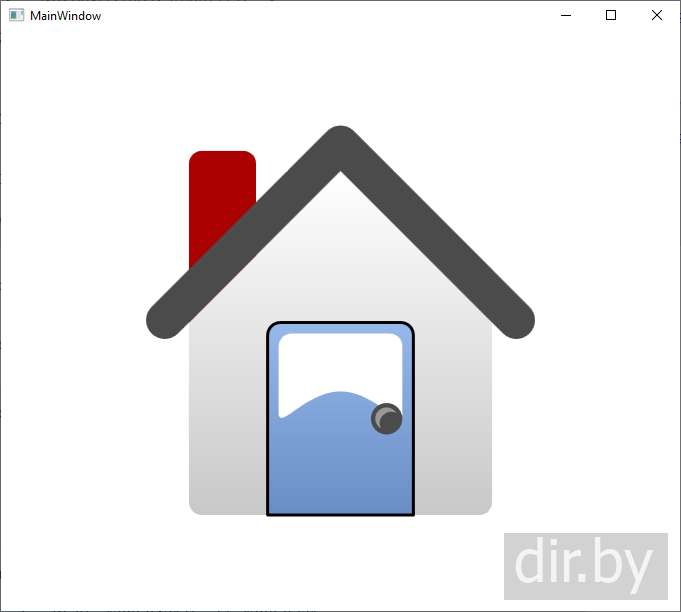

Запустим и увидим:
