JavaScript - programming language for HTML
 Drawing a picture with movement and animation (sprite). Use the HTML element <canvas>. Use JavaScript for movement: var img = new Image(), img.src = url, drawImage, timer, window.setInterval

moves with the animation like this:

Step 1. Let's create a new file 1.html
  Html     Let's write the code in the file 1.html
<html>

<!-- heading -->
<head>
     <meta charset="utf-8">
     <title>Example</title>
</head>

<!-- page -->
<body>
     <!-- HTML canvas -->
     <canvas id="canvas1" width='400px' height='400px'></canvas>

     <!-- JavaScript Functions -->
     <script>

          // we upload pictures from files
          function loadImages(files, callbackAllFilesLoaded)
          {
               // count the number of files
               var countFilesToLoad = 0;
               for (var fileId in files)
               {
                    countFilesToLoad++;
               }

               var images = {};
               for (var fileId in files)
               {
                    // create a blank picture
                    images[fileId] = new Image();

                    // event onload
                    images[fileId].onload = function()
                    {
                         // when all the files are loaded, call our function callbackAllFilesLoaded to draw a picture
                         if ( --countFilesToLoad <= 0 )
                         {
                              callbackAllFilesLoaded(images);
                         }
                    };

                    // uploading a picture
                    images[fileId].src = files[fileId];
               }
          }

          function AnimationInit()
          {
               window.requestAnimFrame = (function(callback) {
                    return window.requestAnimationFrame ||
                         window.webkitRequestAnimationFrame ||
                         window.mozRequestAnimationFrame ||
                         window.oRequestAnimationFrame ||
                         window.msRequestAnimationFrame ||
                         function(callback)
                         {
                              window.setTimeout(callback, 1000 / 60); // 60 time in 1 second (1000 ms)
                         };
               })();
          }

     </script>

     <!-- master code -->
     <script>
          function MyAnimation(context, canvas, loadedImages, data)
          {
               <!-- clear everything on canvas -->
               context.clearRect(0, 0, canvas.width, canvas.height);

               // draw part of the picture by position x,y
               const rect = data.spriteOffsets[Math.trunc(data.spriteIndex) % data.spriteOffsets.length ];
               context.drawImage(loadedImages.tree, rect.x, rect.y, rect.width, rect.height, data.xPos, data.yPos, rect.width, rect.height);

               // next sprite index
               data.spriteIndex += 0.15;

               // change the position of the picture
               data.xPos = data.xPos>410 ? 0 : data.xPos + 1.3;

               // request new frame
               requestAnimFrame(function(){
                    MyAnimation(context, canvas, loadedImages, data);
               });
          }

          <!-- file -->
          var files = {
               tree : "./dog_run.png"
          };

          <!-- context for drawing -->
          var canvas = document.getElementById('canvas1');
          var context = canvas.getContext('2d');

          <!-- upload images -->
          loadImages(files, function (loadedImages)
          {
               <!-- initializing an animation -->
               AnimationInit();

               <!-- data to move -->
               var spriteOffsets = [
                    {x:244, y:3, width:57, height:42},
                    {x:304, y:4, width:54, height:39},
                    {x:363, y:4, width:57, height:38},
                    {x:420, y:1, width:55, height:40},
                    {x:483, y:4, width:57, height:36},
                    {x:542, y:4, width:57, height:38}
               ];

               var data = {
                    xPos: 0,
                    yPos: 20,
                    spriteIndex : 0,
                    spriteOffsets: spriteOffsets
               };

               <!-- start endless animation -->
               MyAnimation(context, canvas, loadedImages, data);
          });

     </script>
</body>

</html>
Step 2. Download the picture

dog_run.png the picture must be in the same folder as the file 1.html

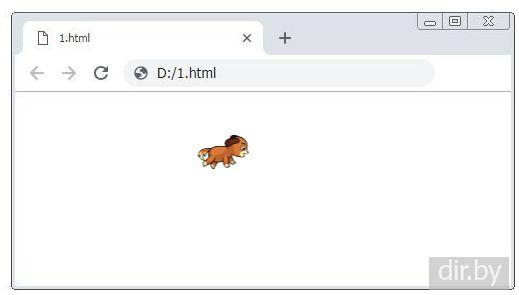

Step 3. Run the file in the browser 1.html
