Three.js - JavaScript library for drawing graphics 3D in the pages HTML
Example "The moon revolves around the earth (moon rotate around earth)" library Three.js
  Looked at 6200 times
 Example "The moon revolves around the earth (moon rotate around earth)" library Three.js
last updated: 14 October 2020
Example we look, we test
Approaching, moving away from the ground - scrolling with the mouse
Rotation - press the left mouse key and move the mouse
Source code
  Html
<!DOCTYPE html>
<html>
     <head>
          <meta charset="utf-8">
          <meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
          <title>three.js css2d - label</title>
          <style>
               body
               {
                    background-color: #000;
                    margin: 0;
                    overflow: hidden;
               }

               #info
               {
                    position: absolute;
                    top: 0px;
                    width: 100%;
                    color: #FFF;
                    padding: 5px;
                    font-family: Monospace;
                    font-size: 13px;
                    text-align: center;
                    z-index: 1;
               }

               .label
               {
                    color: #FFF;
                    font-family: sans-serif;
                    padding: 2px;
                    background: rgba( 0, 0, 0, .6 );
               }
          </style>
     </head>

     <body>
          <!-- connect the library three.js -->
          <script src="https://dir.by/example_lib/tree_js/three.js"></script>

          <!-- additional libraries -->
          <script src="https://dir.by/example_lib/tree_js/OrbitControls.js"></script>
          <script src="https://dir.by/example_lib/tree_js/CSS2DRenderer.js"></script>

          <div id="info"><a href="http://threejs.org" target="_blank" rel="noopener">three.js</a> - three.js css2d - label</div>

          <script>
               var camera, scene, renderer, labelRenderer;

               var clock = new THREE.Clock();
               var textureLoader = new THREE.TextureLoader();

               var earth, moon;

               init();
               animate();

               function init() {

                    var EARTH_RADIUS = 1;
                    var MOON_RADIUS = 0.27;

                    camera = new THREE.PerspectiveCamera( 45, window.innerWidth / window.innerHeight, 1, 1000 );
                    camera.position.set( 10, 5, 20 );

                    var controls = new THREE.OrbitControls( camera );

                    scene = new THREE.Scene();

                    var dirLight = new THREE.DirectionalLight( 0xffffff );
                    dirLight.position.set( 0, 0, 1 );
                    scene.add( dirLight );

                    var axesHelper = new THREE.AxesHelper( 5 );
                    scene.add( axesHelper );

                    var earthGeometry = new THREE.SphereBufferGeometry( EARTH_RADIUS, 16, 16 );
                    var earthMaterial = new THREE.MeshPhongMaterial( {
                         specular: 0x333333,
                         shininess: 5,
                         map: textureLoader.load( 'https://dir.by/developer/three_js/example_moon_rotate_around_earth/images/earth_atmos_2048.jpg' ),
                         specularMap: textureLoader.load( 'https://dir.by/developer/three_js/example_moon_rotate_around_earth/images/earth_specular_2048.jpg' ),
                         normalMap: textureLoader.load( 'https://dir.by/developer/three_js/example_moon_rotate_around_earth/images/earth_normal_2048.jpg' ),
                         normalScale: new THREE.Vector2( 0.85, 0.85 )
                    } );
                    earth = new THREE.Mesh( earthGeometry, earthMaterial );
                    scene.add( earth );

                    var moonGeometry = new THREE.SphereBufferGeometry( MOON_RADIUS, 16, 16 );
                    var moonMaterial = new THREE.MeshPhongMaterial( {
                         shininess: 5,
                         map: textureLoader.load( 'https://dir.by/developer/three_js/example_moon_rotate_around_earth/images/moon_1024.jpg' )
                    } );
                    moon = new THREE.Mesh( moonGeometry, moonMaterial );
                    scene.add( moon );

                    var earthDiv = document.createElement( 'div' );
                    earthDiv.className = 'label';
                    earthDiv.textContent = 'Earth';
                    earthDiv.style.marginTop = '-1em';
                    var earthLabel = new THREE.CSS2DObject( earthDiv );
                    earthLabel.position.set( 0, EARTH_RADIUS, 0 );
                    earth.add( earthLabel );

                    var moonDiv = document.createElement( 'div' );
                    moonDiv.className = 'label';
                    moonDiv.textContent = 'Moon';
                    moonDiv.style.marginTop = '-1em';
                    var moonLabel = new THREE.CSS2DObject( moonDiv );
                    moonLabel.position.set( 0, MOON_RADIUS, 0 );
                    moon.add( moonLabel );

                    renderer = new THREE.WebGLRenderer();
                    renderer.setPixelRatio( window.devicePixelRatio );
                    renderer.setSize( window.innerWidth, window.innerHeight );
                    document.body.appendChild( renderer.domElement );

                    labelRenderer = new THREE.CSS2DRenderer();
                    labelRenderer.setSize( window.innerWidth, window.innerHeight );
                    labelRenderer.domElement.style.position = 'absolute';
                    labelRenderer.domElement.style.top = 0;
                    document.body.appendChild( labelRenderer.domElement );
               }

               function animate()
               {
                    requestAnimationFrame( animate );

                    var elapsed = clock.getElapsedTime();

                    moon.position.set( Math.sin( elapsed ) * 5, 0, Math.cos( elapsed ) * 5 );

                    renderer.render( scene, camera );
                    labelRenderer.render( scene, camera );
               }
          </script>

     </body>
</html>
Note!
Example does not work locally, because the image upload error.

Access to Image at 'Access to Image at 'https://dir.by/developer/three_js/example_moon_rotate_around_earth/images/earth_atmos_2048.jpg' from origin 'null' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource. Origin 'null' is therefore not allowed access.

Error: Access to url at 'http://...' from origin 'null' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource. Origin 'null' is therefore not allowed access.
Решение!

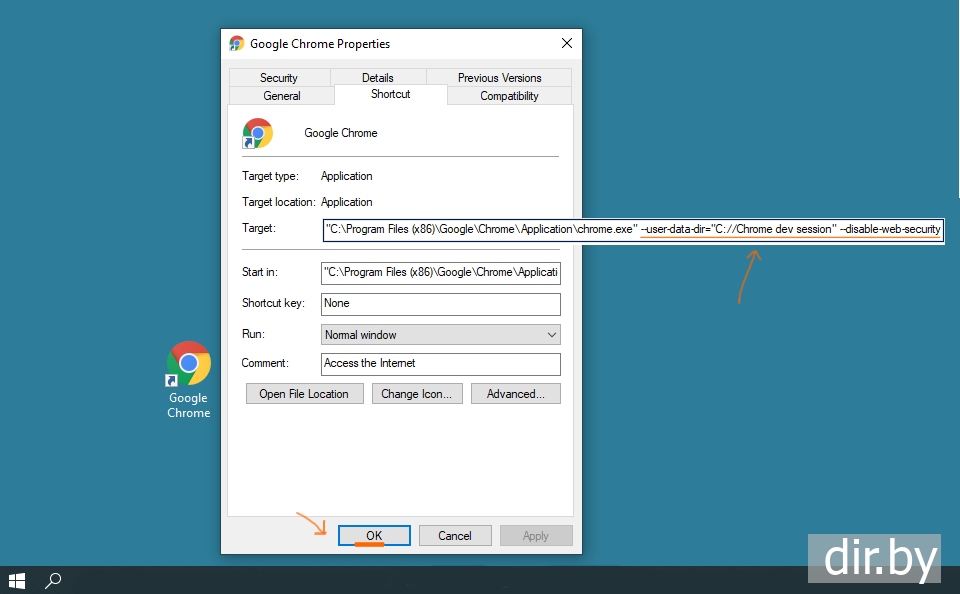

На рабочем столе для иконки Google Chrome добавим парметры: --user-data-dir="C://Chrome dev session" --disable-web-security
Запустим Google Chrome нажав на иконку.
Введем url, ошибки нет.
