Entity Framework (EF5, EF6) for working with a C database#
 Model First. Мы создаем модель в Visual Studio. По модели Entity Framework → создает C# классы и Базу данных
посмотрели 12967 раз
обновлено: 4 July 2018
Суть данного подхода состоит в том, что мы делаем модель в Visual Studio.
Автоматически по модели создаются:
• C# классы
• База данных
План (6 шагов)
Шаг 1. Создаем новое консольное приложение
Шаг 2. Создаем модель (Empty EF Designer Model)
Нажимаем правой клавишей мыши на нашем приложении ConsoleApp1

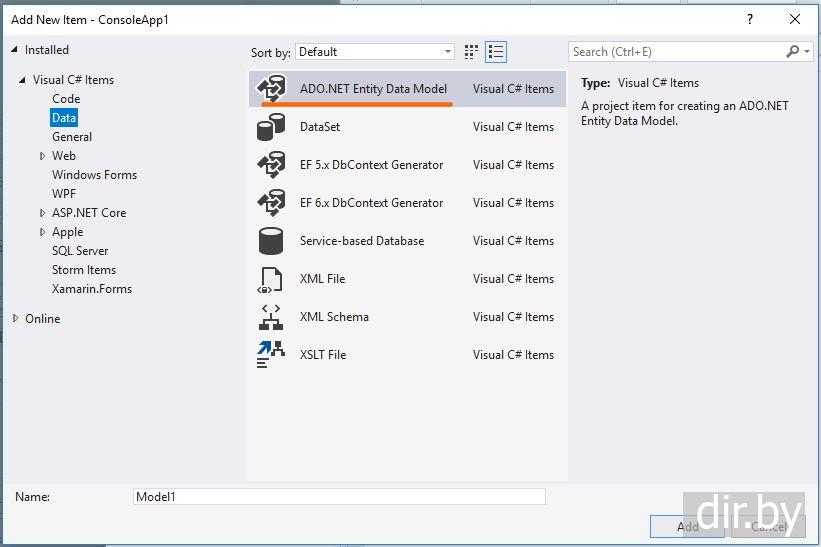

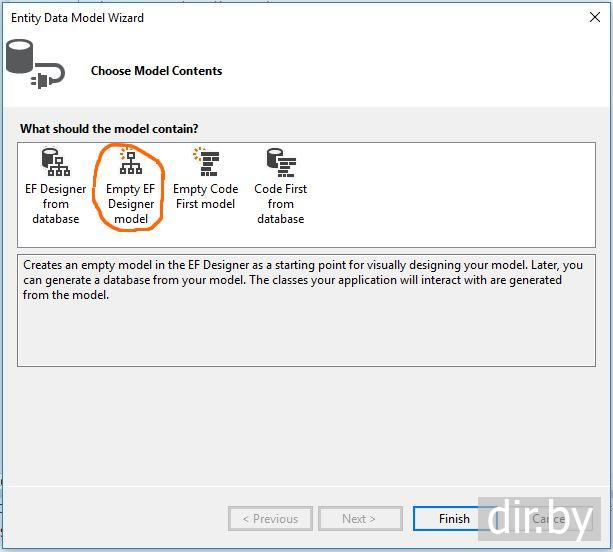

Выбираем Add → New Item → ADO.NET Entity Data Model → Empty EF Designer Model
Нажимаем Finish

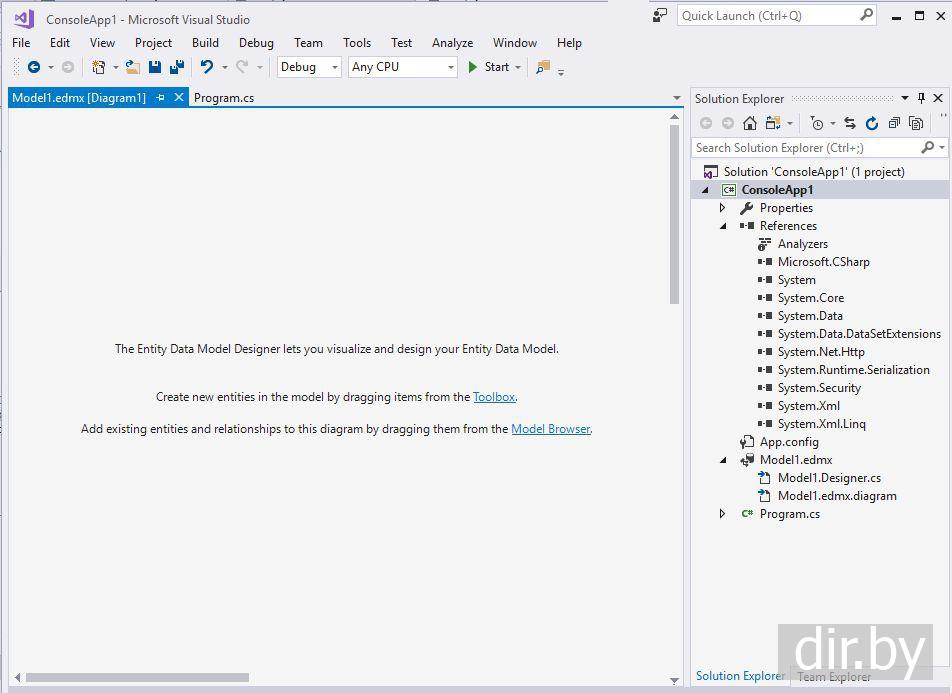

Появится пустое окно создания модели

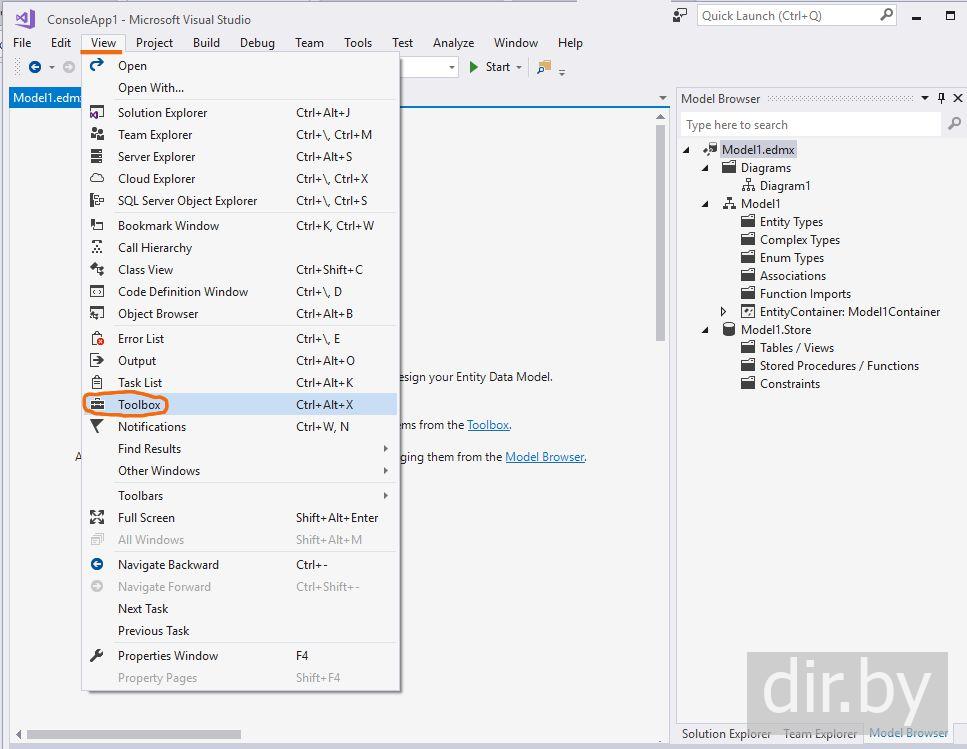

Нажимаем в меню View -> Toolbox

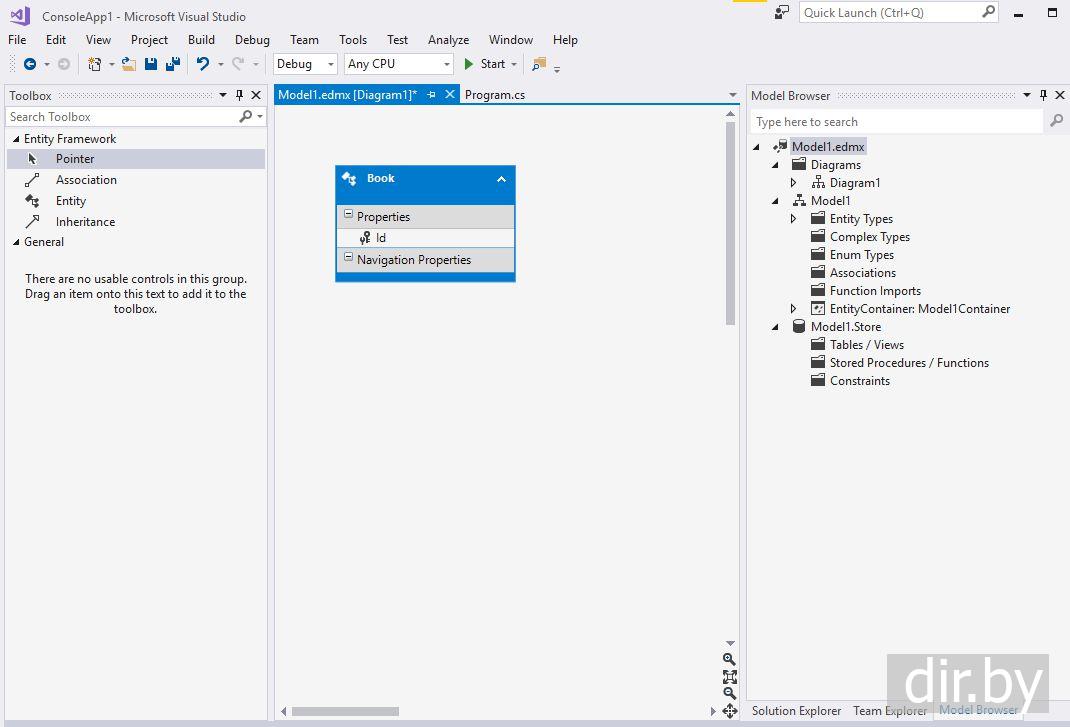

Добавим Entity (сущность).

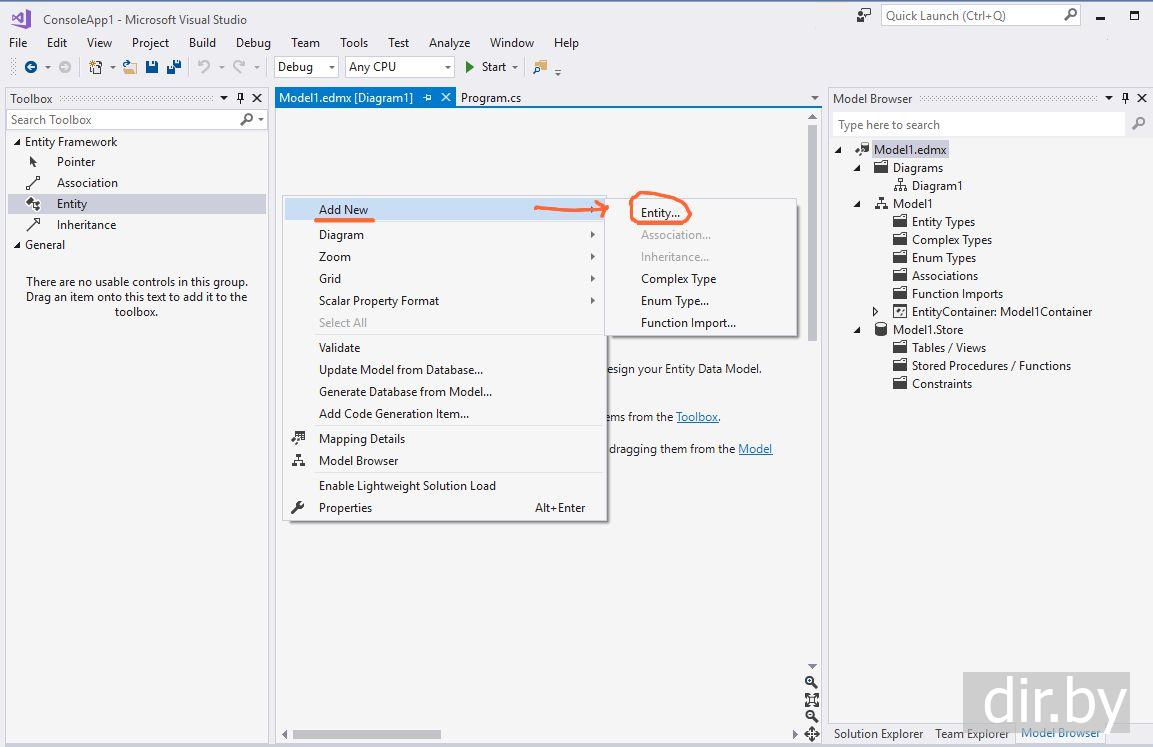

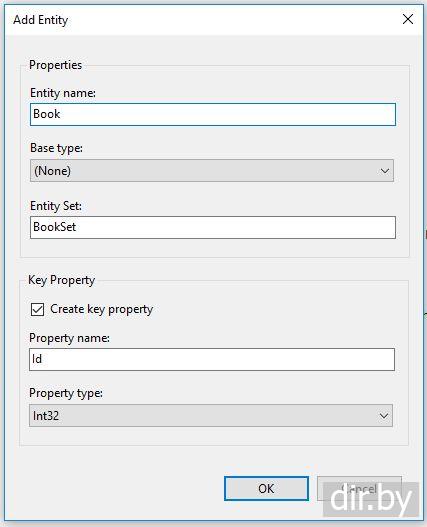

Нажимаем правой клавишей мыши на окне модели → Add New → Entity ...
Добавим свойства:
Name
Book

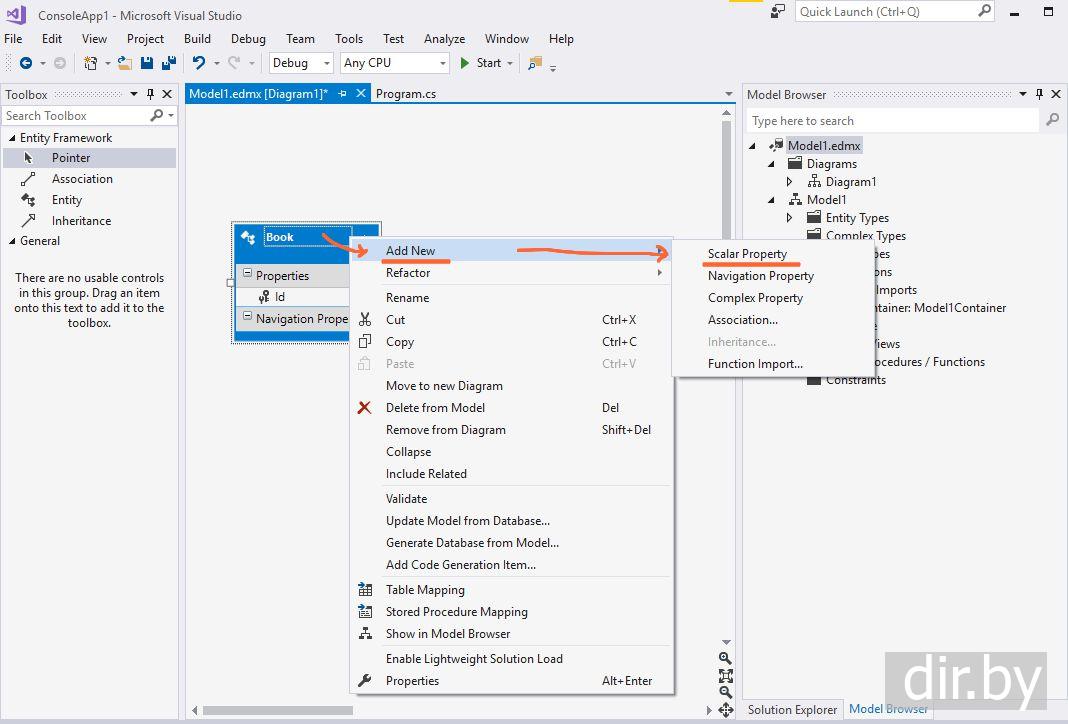

Чтобы добавить свойства нужно нажать правой клавишей мыши на окне Book → Add New → Scalar Property
Вот что получилось:
Scalar Property этот свойства на основе простейших типов int, float, string и т.д.
По умолчанию все добавляемые свойства имеют тип string.
Но мы можем изменить тип в окне свойств.

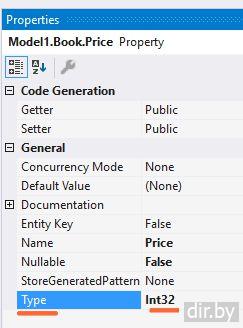

Поставим для свойства Price тип Int32

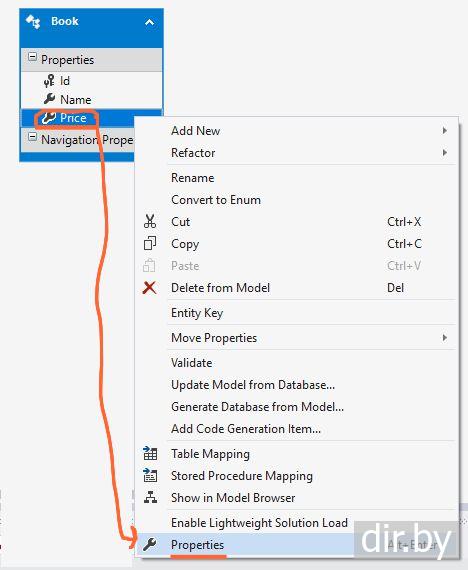

Для этого нажмем правой клавишей мыши на Price -> Properties
Шаг 3. Сгенерируем C# код по модели
Нажмем правой клавишей мыши на окне модели -> Add Code Generation Item ...

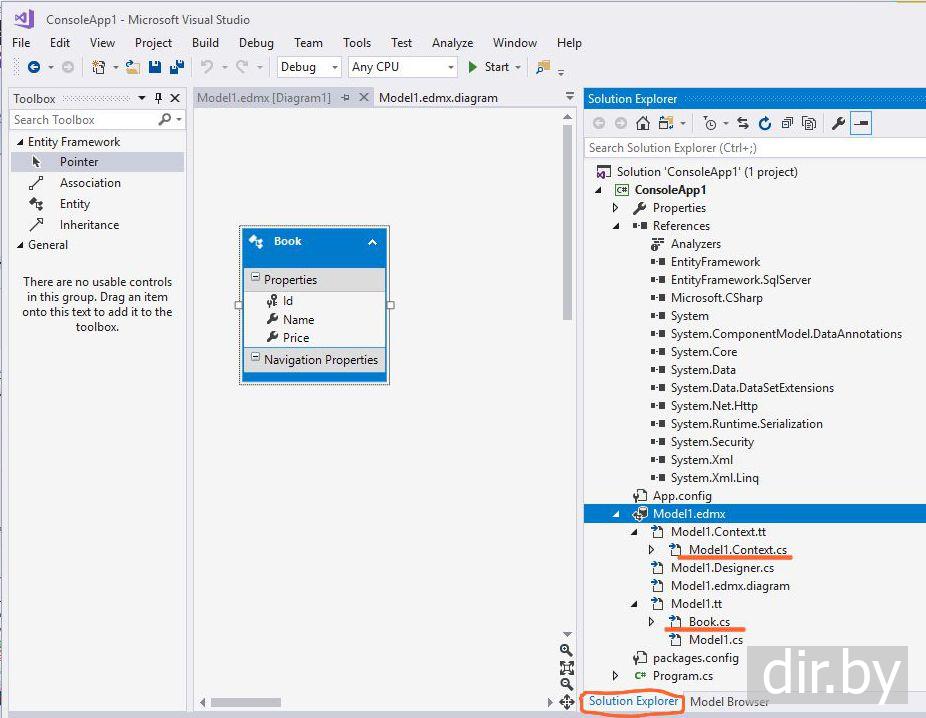

После этого в проекте Model1.edmx мы увидим
• Model1.Context.tt которая содержит файл Model1.Context.cs
• Model1.tt которая содержит файл Book.cs
  C#     Файл Book.cs
//----------------------------
// <auto-generated>
// This code was generated from a template.
//
// Manual changes to this file may cause unexpected ...
// Manual changes to this file will be overwritten ...
// </auto-generated>
//----------------------------

namespace ConsoleApp1
{
     using System;
     using System.Collections.Generic;

     public partial class Book
     {
          public int Id { get; set; }
          public string Name { get; set; }
          public int Price { get; set; }
     }
}
  C#     Файл Model1.Context.cs
//------------------------------------------------------------------------------
// <auto-generated>
// This code was generated from a template.
//
// Manual changes to this file may cause unexpected ...
// Manual changes to this file will be overwritten ...
// </auto-generated>
//------------------------------------------------------------------------------

namespace ConsoleApp1
{
     using System;
     using System.Data.Entity;
     using System.Data.Entity.Infrastructure;

     public partial class Model1Container : DbContext
     {
          public Model1Container()
               : base("name=Model1Container")
          {
          }

          protected override void OnModelCreating(DbModelBuilder modelBuilder)
          {
               throw new UnintentionalCodeFirstException();
          }

          public virtual DbSet<Book> BookSet { get; set; }
     }
}
Шаг 4. Сгенерируем Базу данных по модели

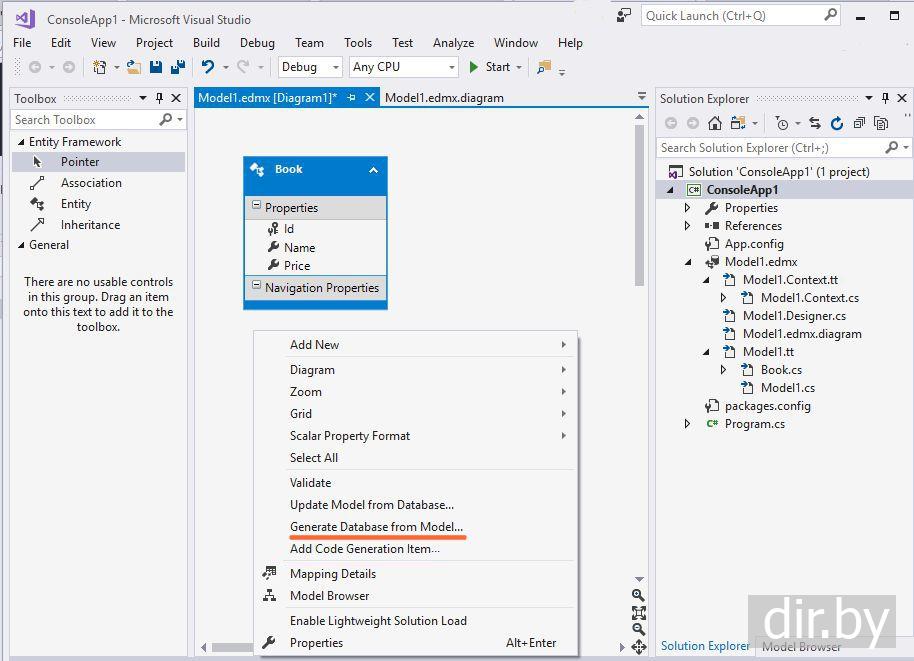

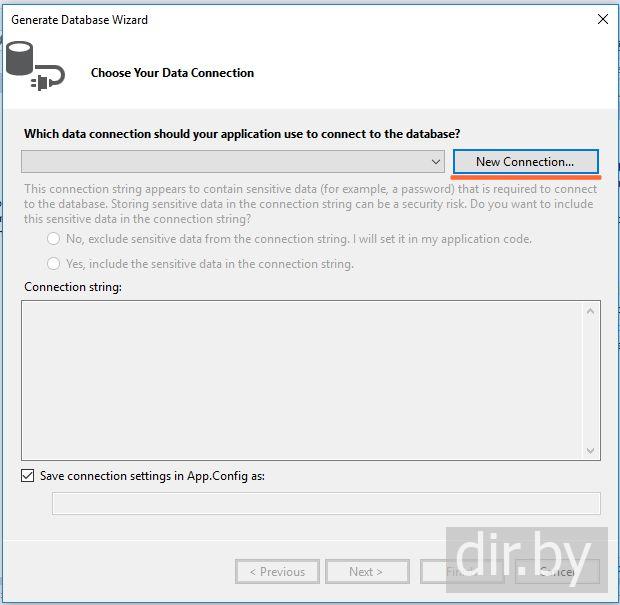

Нажмем правой клавишей мыши на окне модели -> Generate Database from Model ...

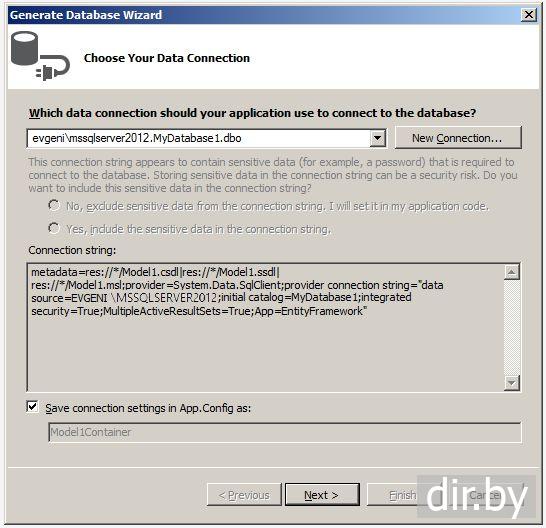

Откроется окно для подключения к Базе данных.
Нажмем на кнопку "New Connection"

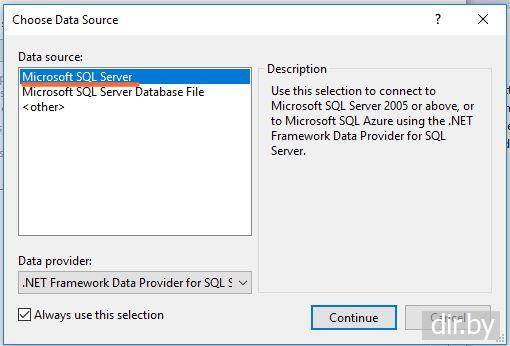

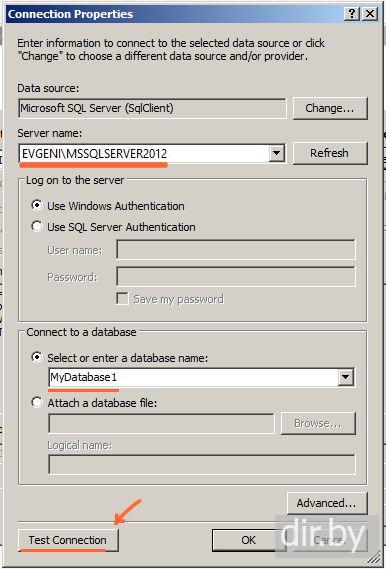

Выберем Microsoft SQL Server
Server name:
Server name это имя сервера базы данных.
Имя сервера базы данных появляется при открытии SQL Server Management Studio...
Я написал EVGENIMSSQLSERVER2012
Select or enter a database name:
Пишем новое название базы данных (или выбираем существующую Базу данных)
Я написал название MyDatabase1
Нажимаем OK

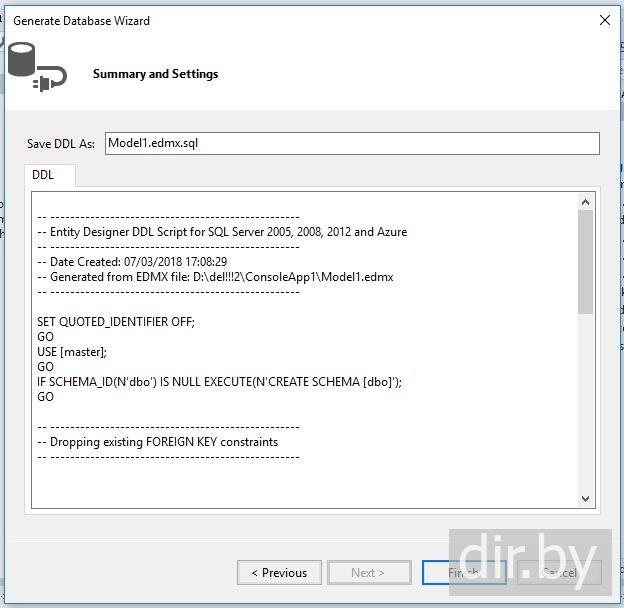

После этого будет сгенерирован скрипт базы данных:
Нажмем Finish (Готово).
Откроется файл скрипта User.edmx.sql.
  Файл Model1.edmx.sql
-- --------------------------------------------------
-- Entity Designer DDL Script for SQL Server 2005, 2008, 2012 and Azure
-- --------------------------------------------------
-- Date Created: 07/04/2018 11:24:50
-- Generated from EDMX file: D:\\ConsoleApp1\Model1.edmx
-- --------------------------------------------------

SET QUOTED_IDENTIFIER OFF;
GO
USE [MyDatabase1];
GO
IF SCHEMA_ID(N'dbo') IS NULL EXECUTE(N'CREATE SCHEMA [dbo]');
GO

-- --------------------------------------------------
-- Dropping existing FOREIGN KEY constraints
-- --------------------------------------------------



-- --------------------------------------------------
-- Dropping existing tables
-- --------------------------------------------------



-- --------------------------------------------------
-- Creating all tables
-- --------------------------------------------------


-- Creating table 'BookSet'
CREATE TABLE [dbo].[BookSet] (
[Id] int IDENTITY(1,1) NOT NULL,
[Name] nvarchar(max) NOT NULL,
[Price] int NOT NULL
);
GO

-- --------------------------------------------------
-- Creating all PRIMARY KEY constraints
-- --------------------------------------------------


-- Creating primary key on [Id] in table 'BookSet'
ALTER TABLE [dbo].[BookSet]
ADD CONSTRAINT [PK_BookSet]
PRIMARY KEY CLUSTERED ([Id] ASC);
GO

-- --------------------------------------------------
-- Creating all FOREIGN KEY constraints
-- --------------------------------------------------

-- --------------------------------------------------
-- Script has ended
-- --------------------------------------------------
Нам надо будет запустить этот скрипт.

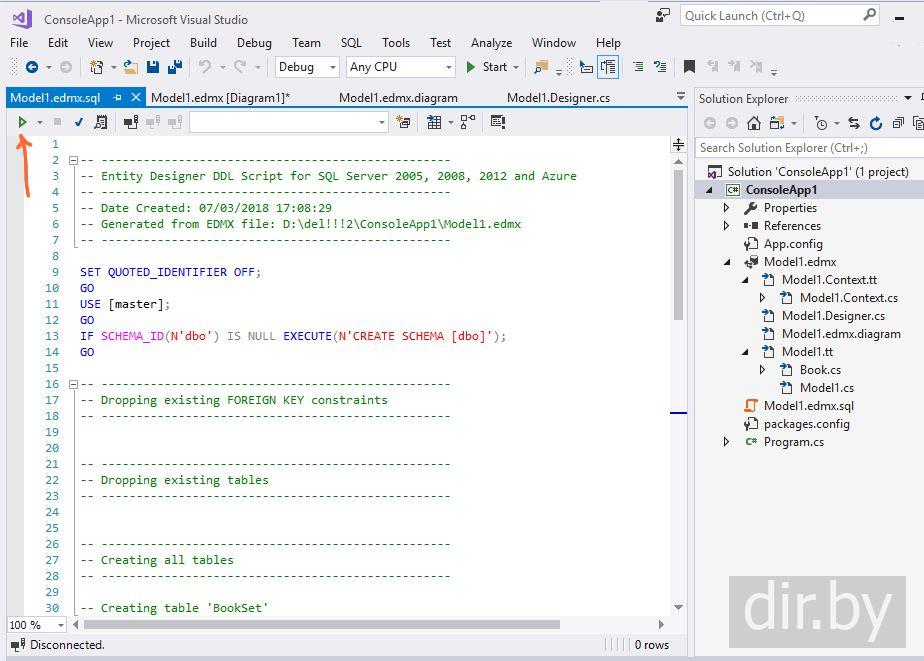

Для этого нажмем в верхнем левом углу на зеленую кнопку

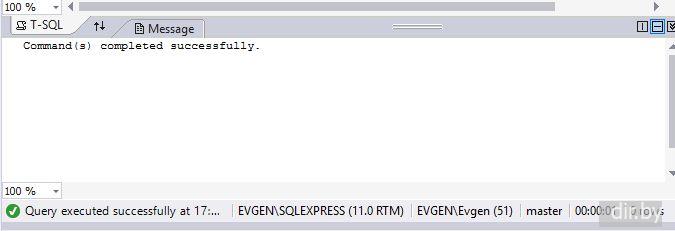

Visual Studio нам покажет об успешном создании Базы данных.
Шаг 5. Проверяем как создалась наша База данных и таблица в Microsoft SQL Server
Note! You must have Microsoft SQL Server installed. If you don't have it, then need to download and install Microsoft SQL Server ...

Note! You must have SQL Server Management Studio installed. If you don't have it, then need to download and install SQL Server Management Studio ...

To open SQL Server Management Studio, we click on the icon on the desktop:
Old version SQL Server Management Studio (this is version 18)
New version SQL Server Management Studio (this is version 22)

A window will appear and press the "Connect" button:

Old version SQL Server Management Studio (this is version 18)
New version SQL Server Management Studio (this is version 22)

After 20 seconds, we will see that SQL Server Management Studio is loaded:
Old version SQL Server Management Studio (this is version 18)
New version SQL Server Management Studio (this is version 22)

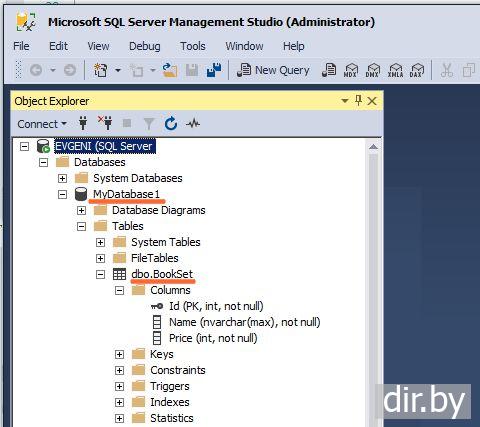

Видим, что автоматически:
• создалась новая база данных MyDatabase1
• создалась новая таблица BookSet
Шаг 6. Пример "Загружаем данные из Базы данных используя C# код"
Добавим в файл Program.cs выделенные строчки
  C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace ConsoleApplication1
{
     class Program
     {
          static void Main(string[] args)
          {
               using (Model1Container db = new Model1Container())
               {
                    // Добавляем данные
                    db.BookSet.Add(new Book() { Name = "Граф Монтекристо", Price = 123 });
                    db.BookSet.Add(new Book() { Name = "Властелин колец", Price=267 });
                    db.BookSet.Add(new Book() { Name = "Три кота", Price = 125 });

                    // Сохраняем данные в Базу данных
                    db.SaveChanges();

                    // показываем данные из Базы Данных
                    foreach(Book book in db.BookSet)
                    {
                         Console.WriteLine(book.Id + " " + book.Name + " " + book.Price);
                    }
               }
          }
     }
}

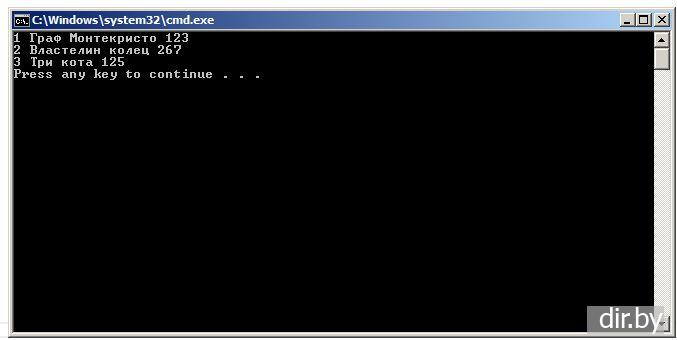

Результат примера
