 Create a new OpenGL application on C++ | Library GLUT, Visual Studio
last updated: 20 December 2024
Download an example drawing a line on OpenGL
ProjectConsoleC++.zip ...
Size: 80 kilobytes
Step 1. Open Visual Studio
If you do not have Visual Studio installed you need install Visual Studio...
Open Visual Studio 2022
or
Open Visual Studio 2019

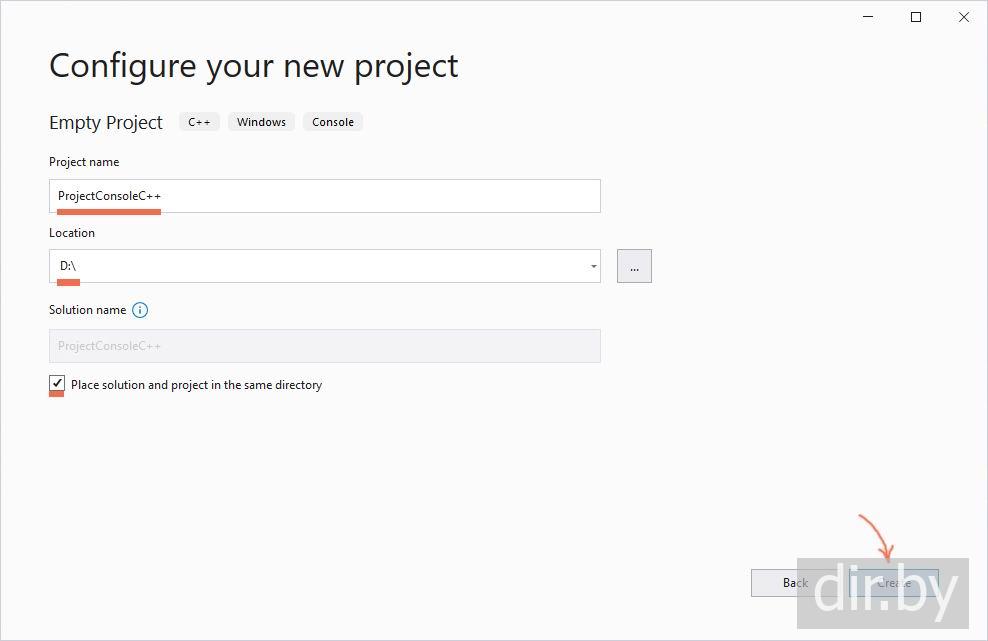

Step 2. Let's create a new C++ console application

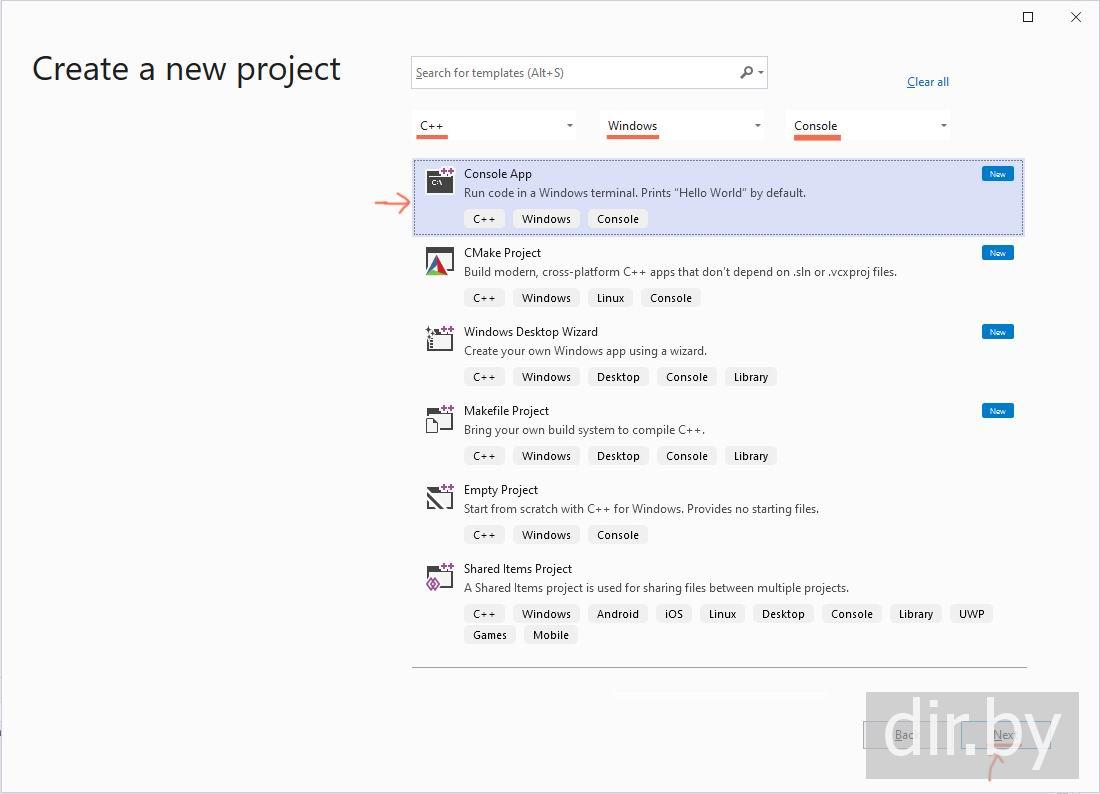

Choose: Console App
The following project was created:

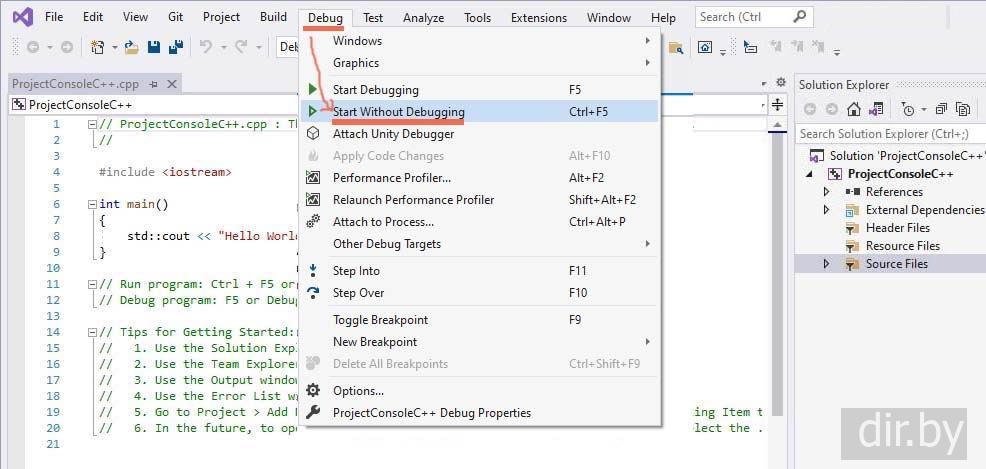

Let's run the program:

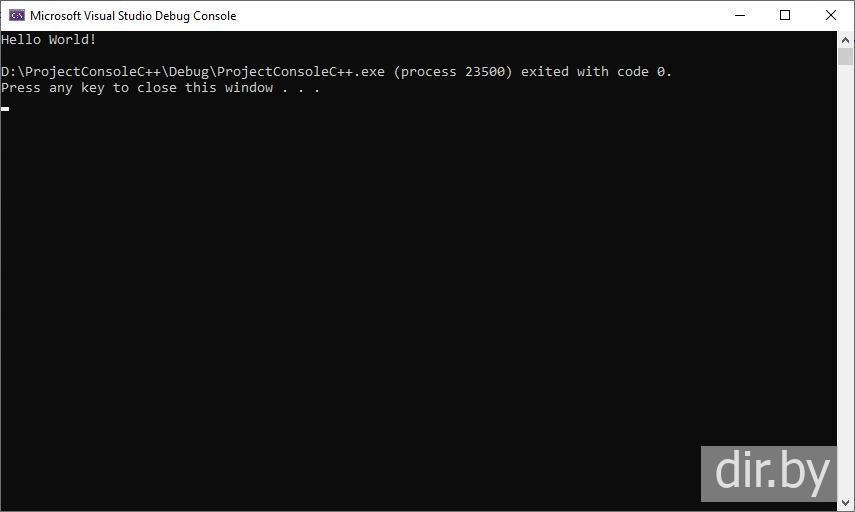

Let's see the result:
Step 3. Download the GLUT library as zip
GLUT is a library.
GLUT creates a window in which OpenGL graphics are drawn;
GLUT The library receives events from the keyboard and mouse

Download the GLUT library:
Option 1. Download zip directly
Option 2. Download zip from the official website opengl.com
glutdlls37beta.zip ...
Size: 130 kilobytes

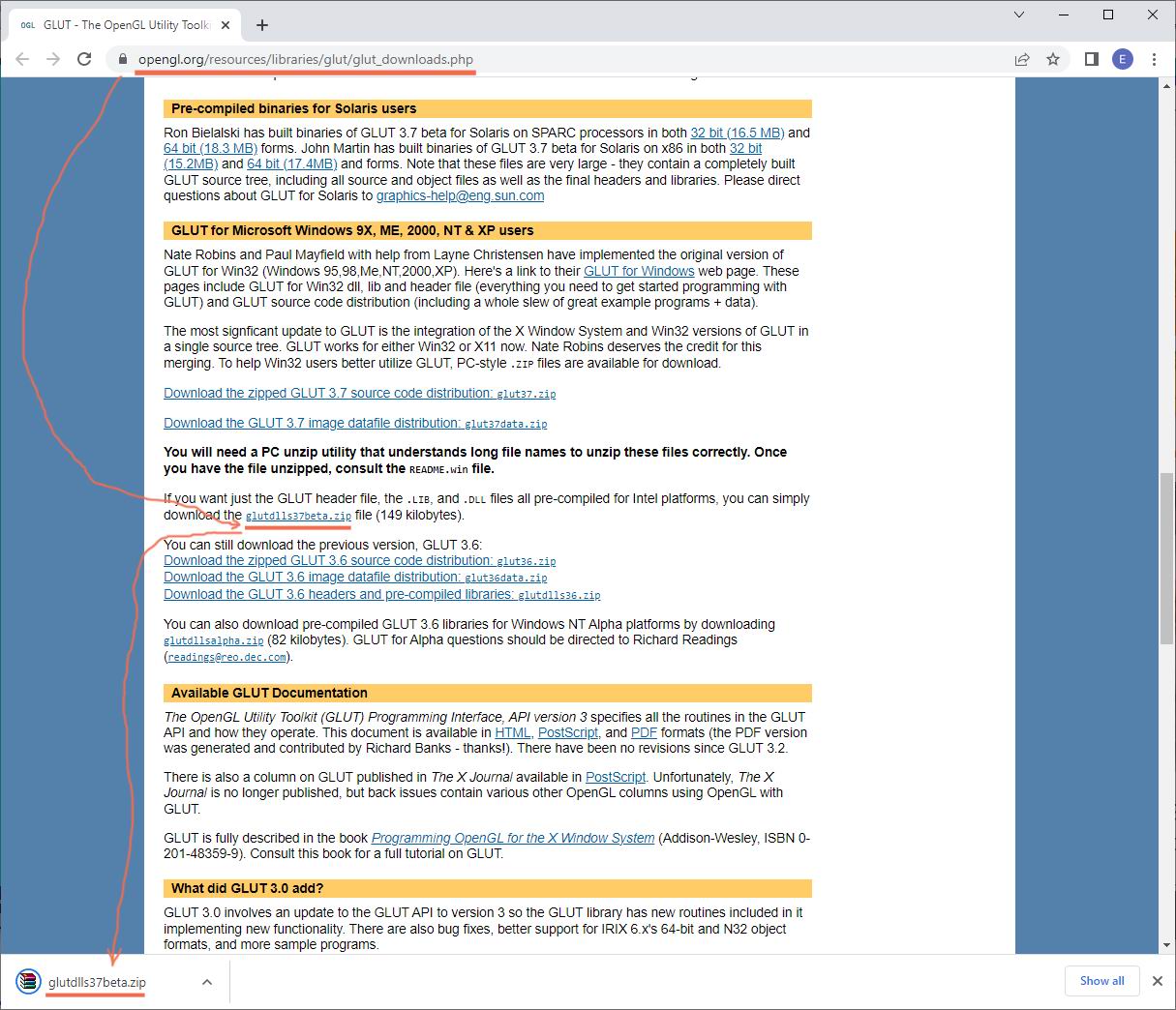

In Google Chrome open www.opengl.org/resources/libraries/glut/glut_downloads.php

Click on glutdlls37beta.zip

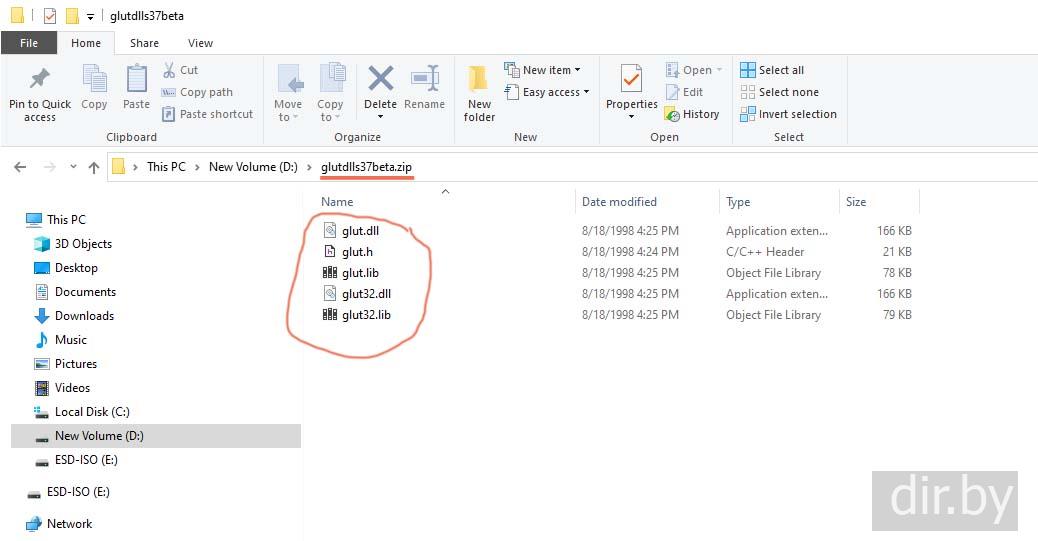

Inside glutdlls37beta.zip are the following files:
Step 4. Add the GLUT files to the C++ project
My C++ console project is located in the folder:
D:\ProjectConsoleC++

Copy the GULT files inside the C++ console project:
glut32.lib
D:\ProjectConsoleC++\lib\glut32.lib
Note! I didn't have a folder lib and I created it myself

glut.h
D:\ProjectConsoleC++\include\glut.h
Note! I didn't have a folder include and I created it myself

glut32.dll
D:\ProjectConsoleC++\Debug\glut32.dll
On a note! It is also necessary

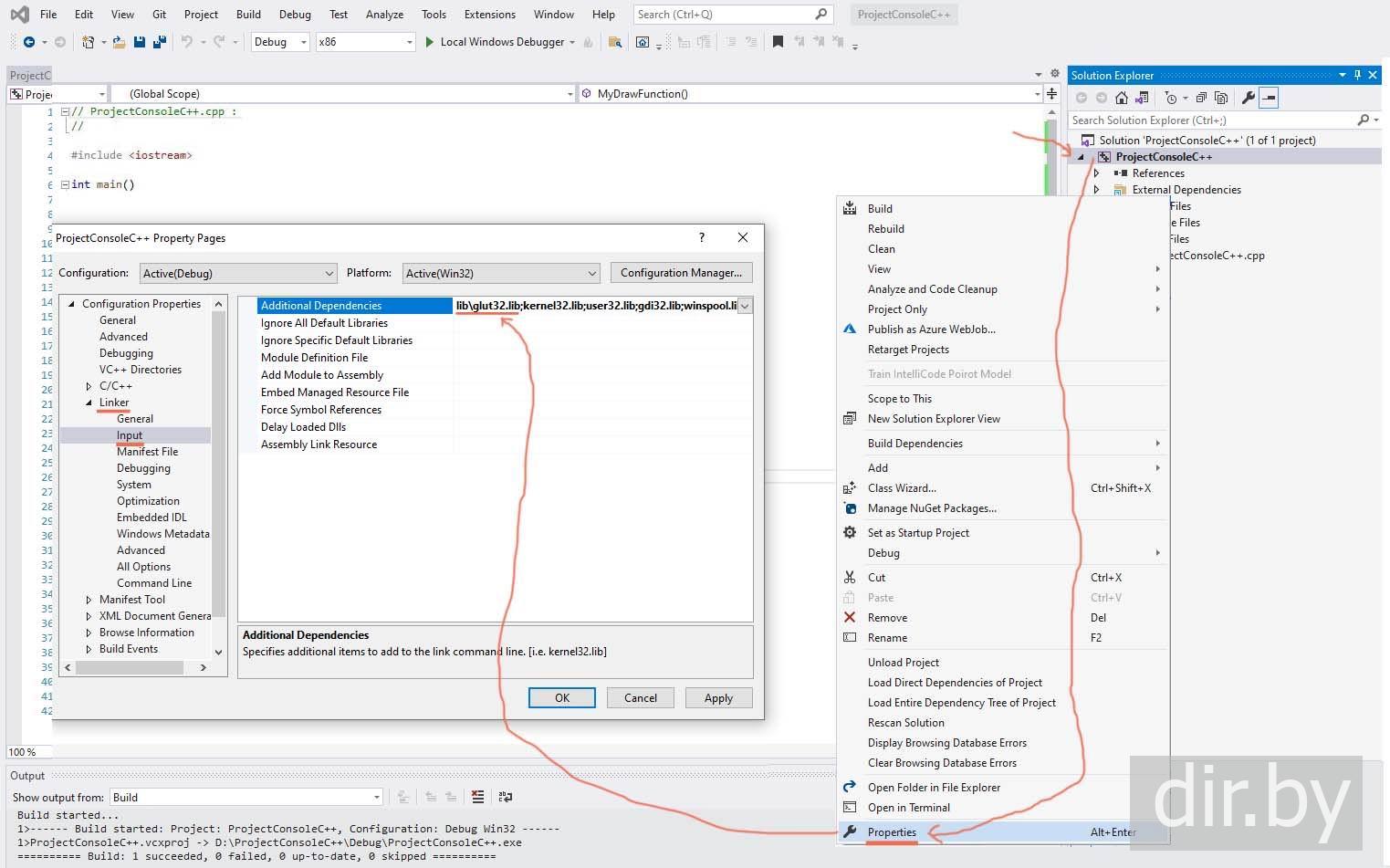

Add lib\glut32.lib inside Visual Studio like this:
Properties → Linker → Input → Additional Dependences → lib\glut32.lib
Step 5. Let's add C++ code to draw the line
  File ProjectConsoleC++.cpp
#include "include/glut.h"
#include <iostream>

void MyDrawFunction();

int main(int argc, char** argv)
{
     glutInit(&argc, argv);
     glutInitWindowSize(640, 480);
     glutInitWindowPosition(10, 10);
     glutCreateWindow("My OpenGL application");

     glClearColor(1.0, 1.0, 1.0, 0.0);
     glMatrixMode(GL_PROJECTION);
     glLoadIdentity();
     gluOrtho2D(0.0, 640.0, 0.0, 480.0);

     glutDisplayFunc(MyDrawFunction);

     glutMainLoop();
     return 0;
}

void MyDrawFunction()
{
     glClear(GL_COLOR_BUFFER_BIT);
     glColor3f(1.0, 0.0, 0.0);
     glPointSize(2.0);

     // green color
     glColor3ub(0, 255, 0);

     // draw line (by pixel)
     for (int i = 100; i < 300; i++)
     {
          glBegin(GL_POINTS);
          glVertex2i(i, i); // x=i, y=i
          glEnd();
     }

     glFlush();
}

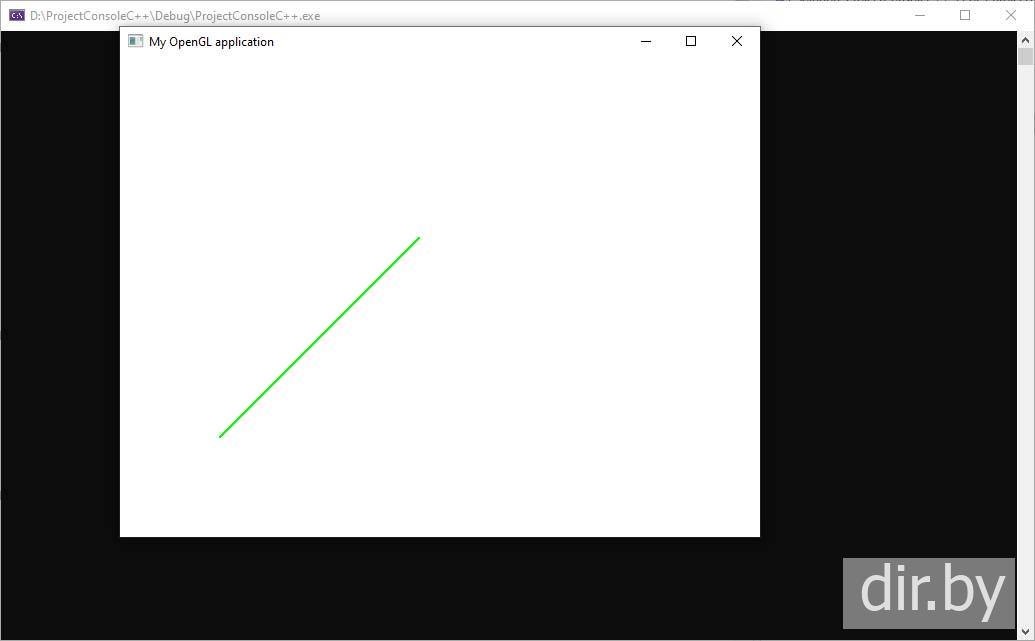

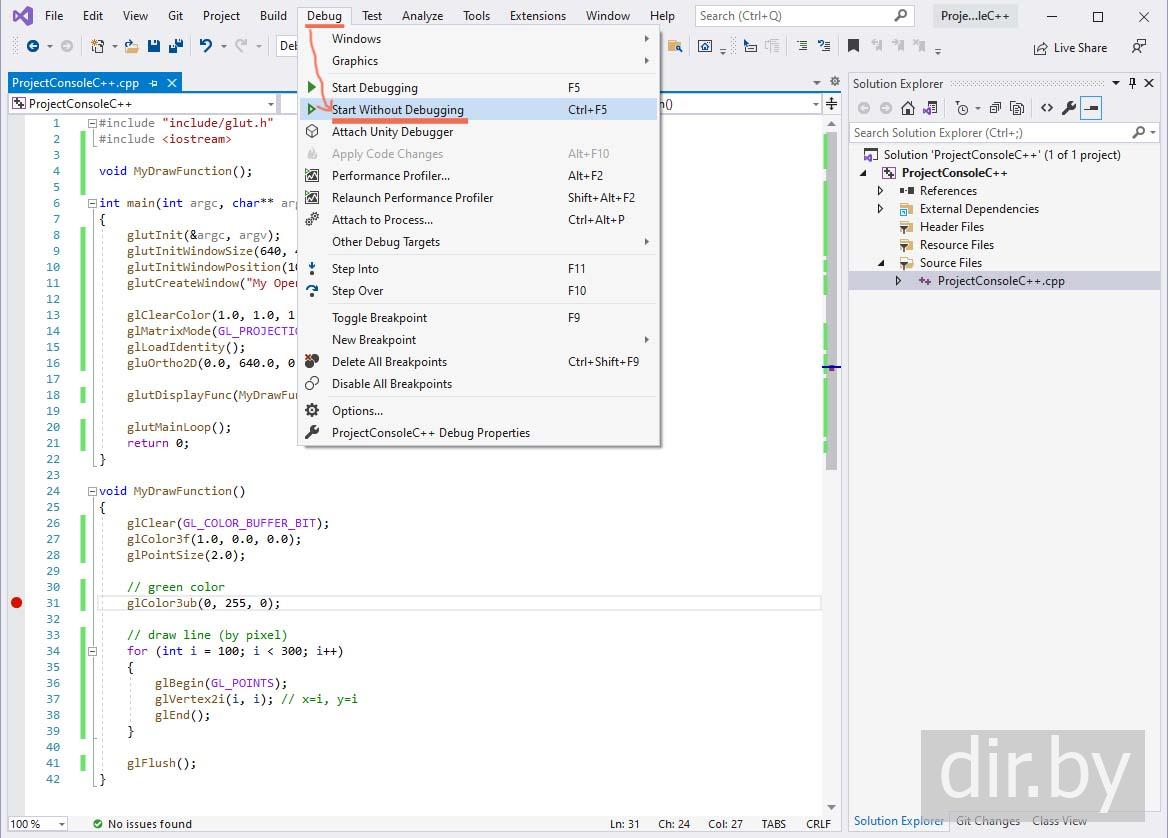

Step 6. Let's run the project and see the drawing of the line OpenGL

Let's see the result:
More OpenGL application

← Previous topic
Pass a function as a parameter to a function (callback) | C++

Next topic →

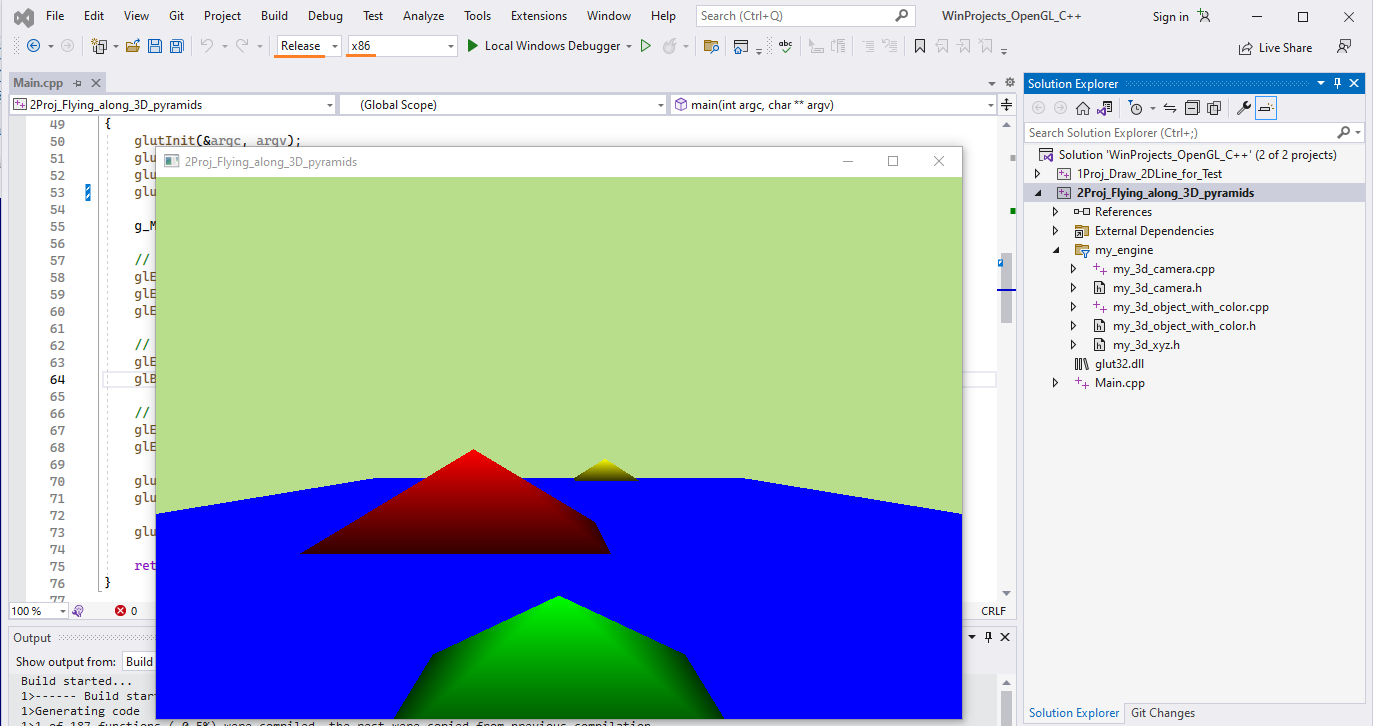

Creating a OpenGL app with 3D pyramid drawing and a motion camera on C++ | Visual Studio | Library glut for using OpenGL
